3.

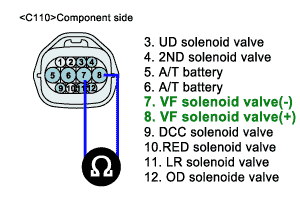

Measure resistance between terminal "7" and terminal "8" of the ATM SOLENOID VALVE harness connector
a.
Specification: VFS 4.35 ± 0.35 Ω (68℉ ~ 20℃)
Ignition "OFF"
Disconnect "A/T SOLENOID VALVE" connector
Measure resistance between terminal "7" and terminal "8" of the ATM SOLENOID VALVE harness connector
Specification: VFS 4.35 ± 0.35 Ω (68℉ ~ 20℃)
Is resistance within specifications?
YES
Go to "CHECK PCM/TCM" as below
NO
Replace "PRESS CONTROL SOL VALVE(VFS)" as necessary and go to "Verification Vehicle Repair" procedure
Connect scantool to data link connector(DLC)
Ignition "ON" & Engine "OFF".
Select A/T Solenoide valve Actuator test and Operate Actuator test.
Can you hear operating sound for "PRESS CONTROL SOL VALVE(VFS)" Actuator Testing Function ?
YES
Go to "Verification Vehicle Repair" procedure
NO
Replace PCM/TCM as necessary and Go to "Verificaiton Vehicle Repair" procedure
ACTUATOR TEST CONDITION
1. IG SWITCH ON
2. TRANSAXLE RANGE SWITCH is normal
3. P RANGE
4. Vehicle Speed 0km/h
5. Throttle position sensor＜ 1V
6. IDLE SWITCH ON
7. ENGINE RPM 0
