Terminal and Connector Inspection
1.

Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

3.

Has a problem been found?

YES

a.

Repair as necessary and go to "Verification Vehicle Repair" procedure

NO

a.

Go to "Power Circuit Inspection" procedure

Power Supply Circuit Inspection
Check Power To Range Switch ,
1.

Disconnect "TRANSAXLE RANGE SWITCH" connector.

2.

Ignition "ON" & Engine "OFF".

3.

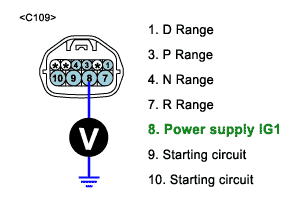

Measure voltage between teminal"8" of the sensor harness connector and chassis ground.

a.

Specification : approx. B+

4.

Is voltage within specifications?

YES

a.

Go to "Signal Circuit Inspection" procedure

NO

a.

Check that Fuse10A is installed or not blown.

b.

Check for open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure

Signal Circuit Inspection
1.

Ignition "OFF" ".

2.

Disconnect "TRANSAXLE RANGE SWITCH" and "TCM(PCM)" connector.

3.

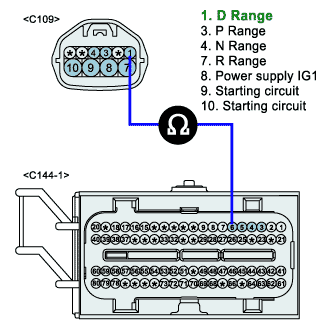

Measure resistance between each teminal of sensor harness connector and TCM(PCM)harness connector as below.

a.

Specification :

Pin No of "TRANSAXLE RANGE SWITCH"

C-109 No1

C-109 No3

C-109 No4

C-109 No7

Pin No of "TCM(PCM)" harness

C144-1 No6

C144-1 No3

C144-1 No5

C144-1 No4

Specification

0Ω

0Ω

0Ω

0Ω

4.

Is resistance within specifications?

YES

a.

Go to "Component Inspection" procedure

NO

a.

Check for Open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure
