Component Inspection
1.

Check Main Relay

(1)

IG "OFF"

(2)

Disconnect the main relay.

(3)

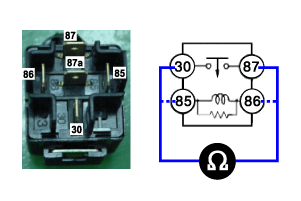

Measure the resistance between terminal 30 and 87 of main relay.

(4)

Measure the resistance between terminal 85 and 86 of main relay.

a.

Specification :

Terminal

Continuity

30 ~ 87

NO

85 ~ 86

YES (Approx. 70Ω ~ 120Ω)

(5)

Is the measured reisistance within specification ?

YES

▶ Substitute with a known - good PCM and check for proper operation.

If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.

NO

▶ Substitute with a known - good Main Relay and check for proper operation.

If the problem is corrected, replace Main Relay and go to "Verification of Vehicle Repair"procedure.

caution

There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others
