1.

Connect scantool to data link connector(DLC)

2.

Engine "ON".

3.

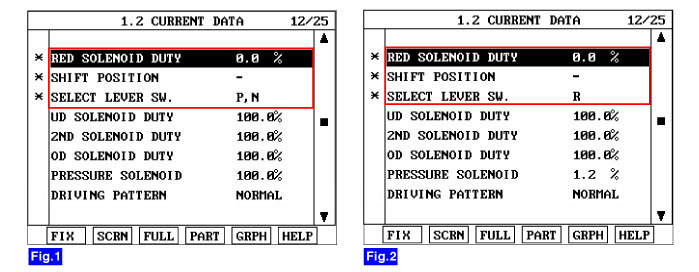

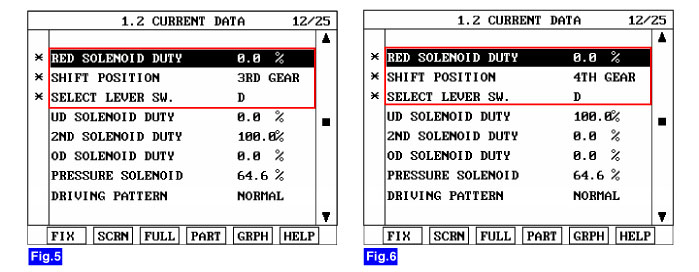

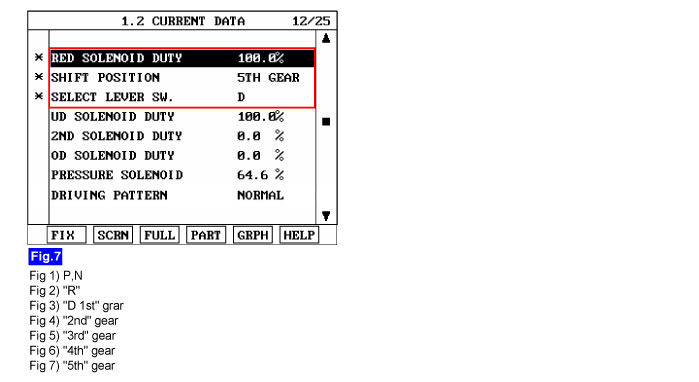

Monitor the "RED SOL. VALVE" parameter on the scantool

4.

Shift gear position .

5.

Is "RED SOLENOID DUTY " within specifications?

YES

a.

Fault is intermittent caused by poor contact in the sensor’s and/or TCM(PCM)’s connector or was repaired and TCM(PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure

NO

a.

Go to "W/Harness Inspection " procedure
