The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 4th gear ratio, while the transaxle is engaged in the 4th gear. For example, if the output speed is 1,000 rpm and the 4th gear ratio is 1.233, then the input speed is 1,233 rpm.
This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 4th gear ratio, while the transaxle is engaged in 4th gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.
Item | Detecting Condition | Possible cause |
DTC Strategy | ● 4th gear incorrect ratio | ● Faulty Input speed sensor ● Faulty output speed sensor ● Faulty OD clutch or 2nd brake |
Enable Conditions | ● Engine speed >450rpm ● Output speed >300rpm ● Shift stage 4th. gear ● Input speed >0rpm ● A/T oil temp output ≥ -23°C(-9.4°F) ● 11V ≤ Battery Voltage ≤16V ● TRANSAXLE RANGE SWITCH is normal and above 2sec is passed from IG ON | |
Threshold value | ● ㅣinput speed/4th gear ratio - output speedㅣ≥200rpm | |
Diagnostic Time | ● More than 1sec | |
Fail Safe | ● Locked into 3rd gear.(If diagnosis code P0734 is output four times, the transaxle is locked into 3rd gear) |
※ Go to "Signal circuit Inspection" procedure.
GEAR POSITION | ELEMENT | ||||||||
L/R BRAKE | 2ND BRAKE | U/D CLUTCH | O/D CLUTCH | RED BRAKE | DIR CLUTCH | REV CLUTCH | OWC1 | OWC2 | |
1st | ● | ● | ● | ● | ● | ||||
2nd | ● | ● | ● | ● | |||||
3rd | ● | ● | ● | ● | |||||
4th | ● | ● | ● | ● | |||||
5th | ● | ● | ● | ||||||
REV | ● | ● | ● | ||||||
N,P | ● | ● |
Low & Reverse Brake is released When the vehicle speed over the 5MPH(7km/h)
Connect Scantool.
Engine "ON".

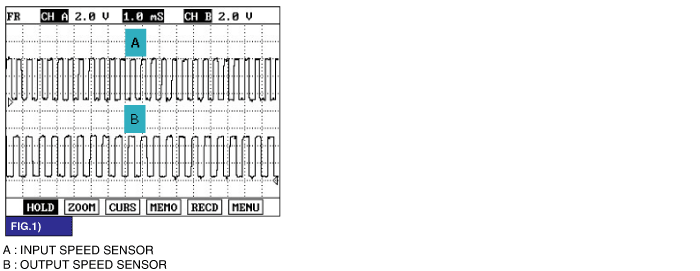

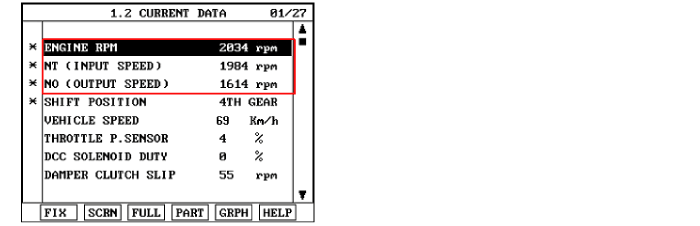

Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool.
Accelerate the Engine speed until about 2000 rpm in the 4th gear.
Specification : INPUT SPEED - (OUTPUT SPEED × GEAR RATIO) ≤ 200 RPM
Is "INPUT & OUTPUT SPEED SENSOR" within specifications?
▶ Go to "Component Inspection" procedure.
▶ Check for electrical noise of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT & OUTPUT SPEED SENSOR. Repair as necessary and Go to "Verification of Vehicle Repair" procedure.

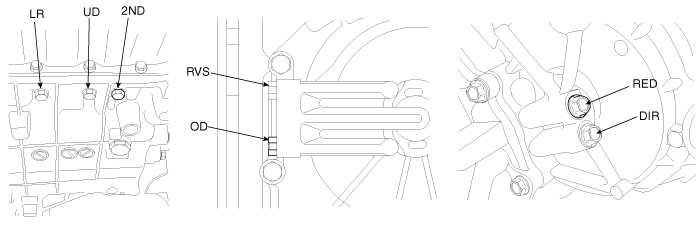

Connect oil pressure gauge to "2ND" and "OD" and "RED" port.
Engine "ON".
Drive a car with gear position 4 in "SPORTS MODE".
Compare it with reference data as below.
Specification : refer to Standard Oil Pressure Table as below
Is oil pressure value within specifications?

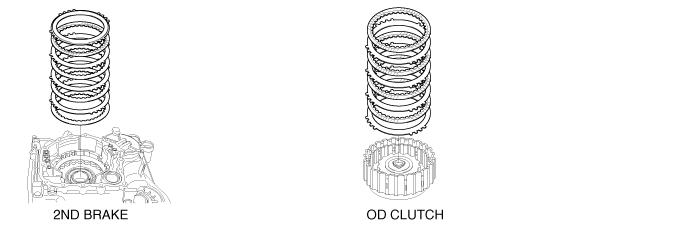

▶ Repair AUTO TRANSAXLE(Clutch or Brake) as necessary and Go to "Verification of Vehicle Repair" procedure.
▶ Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "Verification of Vehicle Repair" procedure.
After a repair, it is essential to verify that the fault has been corrected.
Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode.
Using a scantool, Clear DTC.
Operate the vehicle within DTC Enable conditions in General information.
Are any DTCs present ?
▶ Go to the applicable troubleshooting procedure.
▶ System performing to specification at this time.
