COMPONENT LOCATION
General Description

The wheel speed sensor is the essential component the ABS ECU uses to calculate vehicle speed and to determine whether wheel lock occurs. For example, rear wheel speed signal is used as a referecnce value, for vehicle speed, in front wheel drive vehicles, and if a difference between front and rear wheel speed occurs, then ABS control is performed. Wheel speed sensor is active hall-sensor type and good at temperature and noise chariteristic. Digital wave is produced as tone wheel rotate according as hall sensor principle. Frequency of duty wave is changed in proportion to rotation of tone wheel and HECU calculate vehicle speed by this frequency.

DTC Description

The ABS ECU monitors the wheel speed sensor circuit continuously. A direct current is supplied in the wheel-speed sensor by a power source in the input amplifier of the control unit. If the WSS circuit is broken, in that case a fault is detected by detecting abnormal input current. HECU cut off the voltage supply to wheel sensor channel which had a fault and prevent vehicle's damage due to super heated harness. If one or more defects has detected, DTC code of defected wheel will be stored. Mutual short between sensors is detected by executing self diagnosis successively at corresponding wheel when ignition ON. Warning lamp is turned OFF unless fault is detected any more when the IG KEY is turned ON again.

DTC Detecting Condition

Item

Detecting Condition

Possible cause

DTC Strategy

Voltage monitoring

Open or short of Wheel speed sensor circuit

Faulty Wheel speed sensor

Faulty HECU

Case1

Monitoring Period

Once after power up.

Enable Conditions

Shorts between WSS lines and shorts to UZ can be detected by switching single WSS channels in sequence. If there is an error after end of test, a failure is reconized.

Case2

Monitoring Period

Continuous

Enable Conditions

When the sensor current levels are out of permissible range(LOW : 7 mA, HIGH : 14 mA) for 200 ms.

Fail Safe

Sensor failure outside of the ABS control cycle

1.

Only one wheel failure : Only the ABS/ESP functions are inhibited. The ABS/ESP warning lamps are activated and the EBD warning lamp is not activated.

2.

Two wheels failure : Only the ABS/ESP functions are inhibited. The ABS/ESP warning lamps are activated and the EBD warning lamp is not activated.

3.

More than 3 wheels failure :System down. The ABS/EBD/ESP functions are inhibited. The ABS/EBD/ESP warning lamps are activated.

Sensor failure inside the ABS control cycle

1.

One front wheel failure : Inhibit the ABS/ESP control. Pressure is increased on a front wheel, Pressure is decreased on a rear wheel. After the ABS/ESP control, the ABS/ESP functions are inhibited. The ABS/ESP warning lamps are activated and the EBD warning lamp is not activated.

2.

Two wheels failure : Inhibit the ABS/ESP control. Pressure is increased on a front wheel, Pressure is decreased on a rear wheel. After the ABS/ESP control, the ABS/ESP functions are inhibited. The ABS/ESP warning lamps are activated and the EBD warning lamp is not activated.

3.

3More than 3 wheels failure : System down. The ABS/EBD/ESP functions are inhibited. The ABS/EBD/ESP warning lamps are activated.

Monitor Scantool Data
1.

Engine "ON".

2.

Connect scantool to Data Link Connector(DLC).

3.

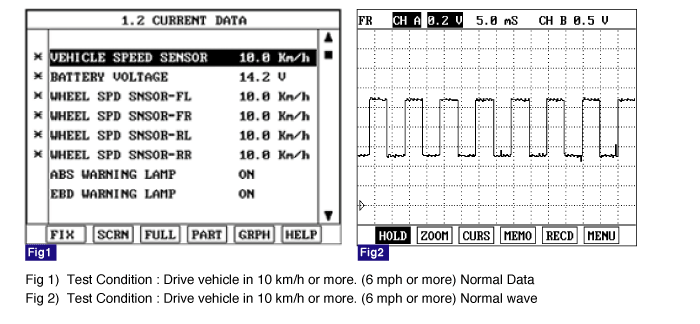

Start and drive vehicle in gear and maintain vehicle speed is approx. 10 km/h or more(6 mph or more)

4.

Monitor the "Wheel speed sensor" parameter on the Scantool.

Specification : Approx. 10 km/h or more (6 mph or more)

5.

Is parameter displayed within specifications?

▶ Fault is intermittent caused by poor connection in wheel speed sensor harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

▶ Go to "W/Harness Inspection" procedure.

Terminal & Connector Inspection
1.

Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

3.

Has a problem been found?

▶ Repair as necessary and then go to "Verification of Vehicle Repair" procedure.

▶ Go to "Power Circuit Inspection" procedure.

Power Supply Circuit Inspection
1.

Ignition "ON".

2.

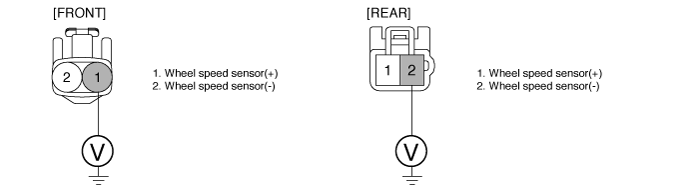

Measure voltage between terminal (front:"1", rear:"2") of the wheel speed sensor harness connector and chassis ground.

Specification : Approx. B+

3.

Is the measured voltage within specifications?

▶ Go to "Signal Circuit Inspection" procedure.

▶ Check for open or short to GND in wheel speed sensor harness between terminal (front:"1", rear:"2") of the wheel speed sensor harness connector and terminal of the HECU harness connector. Repair as necessary and then go to "Verification of vehicle Repair" procedure.

▶ If OK, go to "Component inspection" procedure.

DTC

LOCATION

HECU harness connector (Voltage)

ABS

ESP

DTC C1200

Front Left

16

26

DTC C1203

Front Right

9

9

DTC C1206

Rear Left

6

6

DTC C1209

Rear Right

8

8

Signal Circuit Inspection
1.

Lift the vehicle by lift.

2.

Ignition "ON".

3.

Turn the wheel with hand.

4.

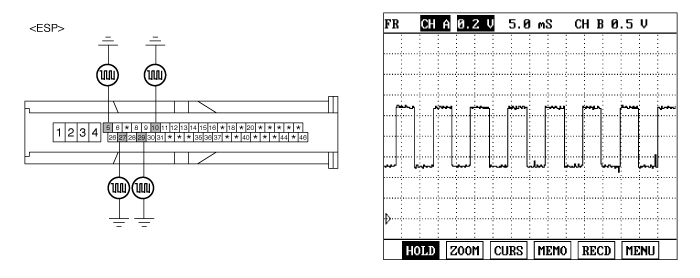

Measure wave between terminal of the HECU harness connector and chassis ground.

Specification : High : 1.4 V , Low : 0.7 V

DTC

LOCATION

HECU harness connector (Signal)

ABS

ESP

DTC C1200

Front Left

5

5

DTC C1203

Front Right

10

10

DTC C1206

Rear Left

17

27

DTC C1209

Rear Right

19

29

5.

Is the measured wave within specifications?

▶ Go to "Component Inspection" procedure.

▶ Check for open or short to GND in wheel speed sensor harness between terminal (front:"2", rear:"1") of the wheel speed sensor harness connector and terminal of the HECU harness connector. Repair as necessary and then go to "Verification of vehicle Repair" procedure.

If OK, substitute with a known-good Wheel speed sensor and check for proper operation. If problem is corrected, replace Wheel speed sensor and then go to "Verification of Vehicle Repair" procedure.

Component Inspection
1.

Ignition "OFF".

2.

Engine "ON".

3.

Does warning lamp remain On?

▶ Substitute with a known-good HECU and check for proper operation. If problem is corrected, replace HECU and then go to "Verification of Vehicle Repair" procedure.

▶ Fault is intermittent caused by open or short of wheel speed sensor harness, faulty wheel speed sensor. Go to the applicable troubleshooting procedure.

Verification of Vehicle Repair

After a repair, it is essential to verify that the fault has been corrected.

1.

Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode

2.

Using a scantool, Clear DTC.

3.

Operate the vehicle within DTC Detecting Condition in General Information.(Start and drive vehicle in gear and maintain vehicle speed is approx. 10 km/h or more(6 mph or more))

4.

Are any DTCs present ?

▶ Go to the applicable troubleshooting procedure.

▶ System performing to specification at this time.
