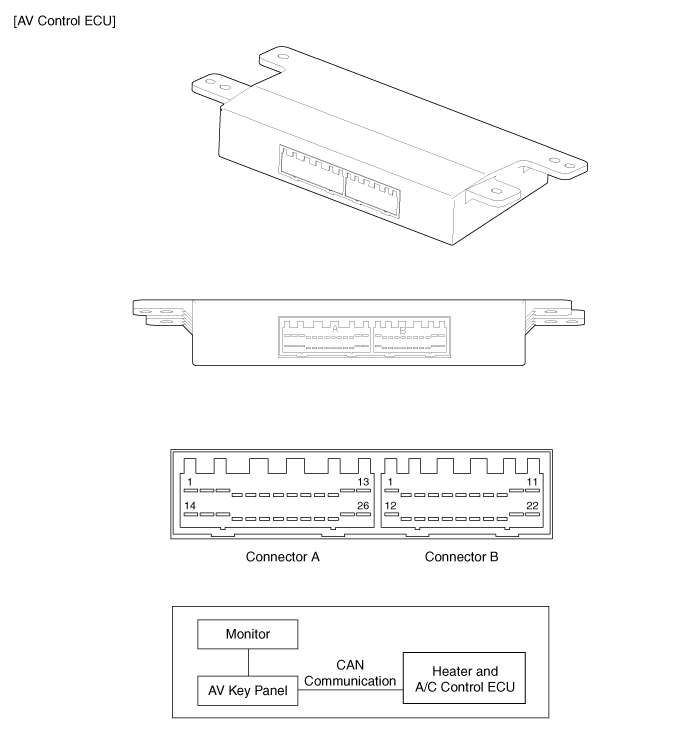

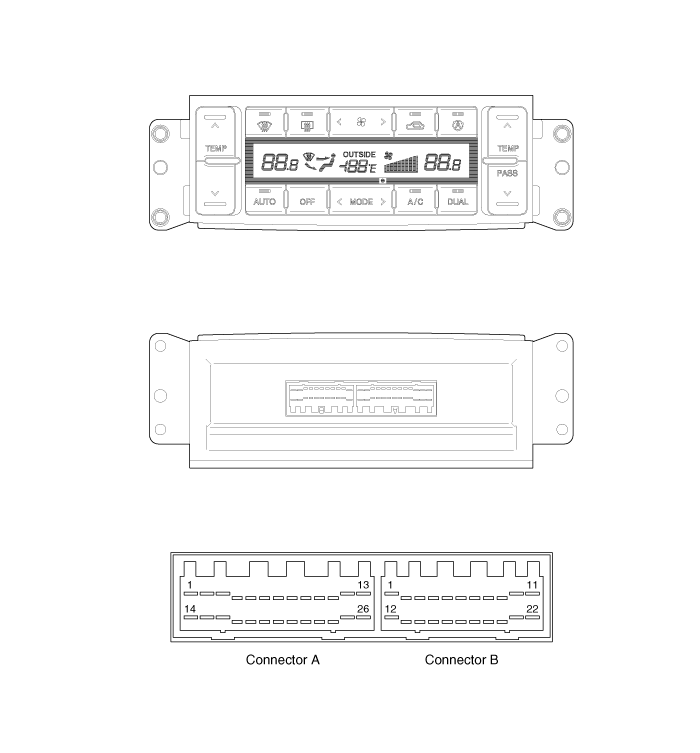

CONNECTOR | PIN | FUNCTION |
CONNECTOR (A) | 1 | Tail lamp (+) |
2 | Battery (+) | |
3 | A/C output | |
4 | A/C select signal | |
5 | - | |
6 | Diagnostic tool | |
7 | - | |
8 | - | |
9 | Intake actuator (recirculation) | |
10 | Rear defogger switch | |
11 | - | |
12 | IGN 2 | |
13 | IGN 2 | |
14 | Rheostat | |
15 | - | |
16 | Temp actuator cool(Passenger's) | |
17 | Temp actuator warm(Passenger's) | |
18 | Temp actuator feedback signal(Passenger's) | |
19 | Vent mode | |
20 | Defrost mode | |
21 | Mode actuator feedback signal | |
22 | Intake fresh | |
23 | Intake recirculation | |
24 | Intake feedback signal | |
25 | Ground | |
26 | Ground | |
CONNECTOR (B) | 1 | Sensor voltage (5V) |
2 | AQS | |
3 | Ambient sensor (+) | |
4 | Humidity sensor (+) | |
5 | In car sensor (+) | |
6 | Evaporator temperature sensor (+) | |
7 | Water temperature sensor | |
8 | Speed sensor | |
9 | Power mosfet (Gate) | |
10 | Power mosfet (Drain) | |
11 | Blower motor (+) | |
12 | Sensor ground | |
13 | Temp actuator cool(Driver's) | |
14 | Temp actuator warm(Driver's) | |
15 | Photo sensor (-)(Driver's) | |
16 | Photo sensor (+)(Passenger's) | |
17 | In car motor | |
18 | Mode actuator feedback signal(Driver's) | |
19 | Blower ON signal | |
20 | PTC ON signal | |
21 | PTC relay 2 | |
22 | PTC relay 3 |
