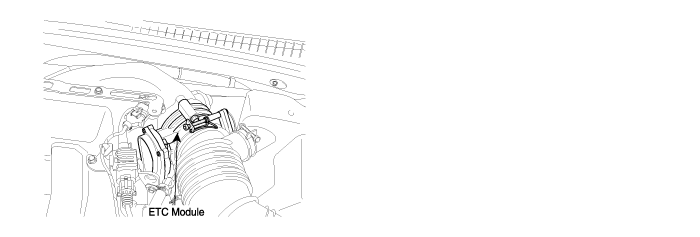

ETC(Electronic Throttle Control Valve) is the device controlling amount of air to engine acccording to driver's intension. Different from the existing mechanical throttle valve which is composed of accelerator pecal and connecting wire cable, ETC consists of a motor, a throttle body and a throttle position sensor. Receiving input signals from electronic accelerator pedal module, PCM lets ETC motor control throttle valve. With ETC, cruise control system works without any additional device.
Checking output signals from TPS 1 and 2, under detecting condition, if output signals difference between TPS1 and TPS2 are detected more than 4.5% for the specified number of times., PCM sets P2135. MIL(Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.
Item | Detecting Condition | Possible Cause | ||||||
DTC Strategy | ● Determines if TPS # 1 disagrees with TPS # 2 | ● Poor connection ● Open or short in TPS circuit ● Faulty TPS ● Faulty PCM | ||||||
Enable condition | ● Ignition "ON" | |||||||
threshold value | ● Difference between average values of TPS1 and TPS2 〉 4.5% | |||||||
diagnosis time | ● Continuous (More than 0.34sec failure for every 10.92sec. Test) | |||||||
MIL ON condition | ● 2 driving cycles | |||||||
Throttle opening ( ° ) | Output voltage(V) [Vref=5.0V] | |
TPS1 | TPS2 | |
0° | 0.0V | 5.0V |
10° | 0.5V | 4.5V |
20° | 0.9V | 4.1V |
30° | 1.4V | 3.6V |
40° | 1.8V | 3.2V |
50° | 2.3V | 2.7V |
60° | 2.7V | 2.3V |
70° | 3.2V | 1.8V |
80° | 3.6V | 1.4V |
90° | 4.1V | 0.9V |
100° | 4.5V | 0.5V |
110° | 5.0V | 0.0V |
Connect scantool to DLC.(Data Link Connector)
IG "ON" ＆ ENG "OFF"

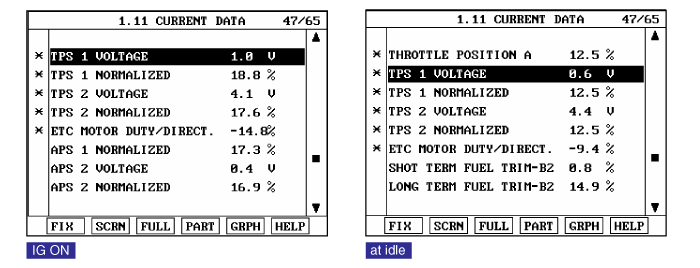

Monitor "TPS1 & TPS2" items by pressing and depressing accellerator pedal.
Throttle opening ( ° ) | Output voltage(V) [Vref=5.0V] | |
TPS1 | TPS2 | |
0° | 0.0V | 5.0V |
10° | 0.5V | 4.5V |
20° | 0.9V | 4.1V |
30° | 1.4V | 3.6V |
40° | 1.8V | 3.2V |
50° | 2.3V | 2.7V |
60° | 2.7V | 2.3V |
70° | 3.2V | 1.8V |
80° | 3.6V | 1.4V |
90° | 4.1V | 0.9V |
100° | 4.5V | 0.5V |
110° | 5.0V | 0.0V |
Are those "TPS1 ＆ TPS2" parameters displayed correctly ?
▶Fault is intermittent caused by poor contact in Sensor’s and/or PCM’s connector or was repairedand PCM memory was not cleared. Thoroughly check connectors for looseness, poorconnection, bending, corrosion, contamination, deterioration, or damage. Repair or replaceas necessary and go to "Verification of Vehicle Repair" procedure
▶Go to "Terminal and connector inspection" procedure.
Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?
▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure
▶ Go to "Power Circuit Inspection " procedure.
IG "OFF".
Disconnect TPS connector.
IG "ON" ＆ ENG "OFF".
Measure voltage between terminal 1 of TPS harness connector and chassis ground.
Measure voltage between terminal 4 of TPS harness connector and chassis ground.
Specification : Approx. 5V
Is the measured voltage within specification ?
▶ Go to "Signal Circuit Inspection" procedure.
▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.
IG "OFF".
Disconnect TPS ＆ PCM connector.
Measure resistance between terminal 6 and 7 of TPS harness connector.
Specification : Infinite
Is the measured resistance within specification ?
▶ Go to "Component Inspection" procedure.
▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.
Check TPS
Ignition "ON" ＆ ENG "OFF".
Monitor signal waveform of TPS by stepping on and off the accellerator padel on scantool
Throttle opening ( ° ) | Output voltage(V) [Vref=5.0V] | |
TPS1 | TPS2 | |
0° | 0.0V | 5.0V |
10° | 0.5V | 4.5V |
20° | 0.9V | 4.1V |
30° | 1.4V | 3.6V |
40° | 1.8V | 3.2V |
50° | 2.3V | 2.7V |
60° | 2.7V | 2.3V |
70° | 3.2V | 1.8V |
80° | 3.6V | 1.4V |
90° | 4.1V | 0.9V |
100° | 4.5V | 0.5V |
110° | 5.0V | 0.0V |
Is the measured signal waveform O.K ?
▶ Substitute with a known-good PCM and check for proper operation. If the problem is corrected,replace PCM and then go to "Verification of Vehicle Repair" procedure.
There is a memory reset function on scantool that can erase optional parts automaticallydetected and memorized by PCM.
Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others
▶ Substitute with a known-good TPS and check for proper operation. If the problem is corrected,replace TPS and then go to "Verification of Vehicle Repair" procedure.
(After replacing ETC, do initialization of ETC as follows)
Erase the trouble codes on PCM
Turn the ignition key off and keep this condition until the main relay is turned off.(It will takes 10sec.)
Turn ignition key on more than 1second to record the throttle motor position on the EEPROM
After a repair, it is essential to verify that the fault has been corrected.
Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code(DTC) which has been diagnosed.
Using a Scantool, Clear the DTCs
Operate the vehicle within conditions noted in the freeze frame data or enable conditions
Monitor that all rediness test have been verified as " Complete "
Are any DTCs present ?
▶ Go to the applicable troubleshoooting procedure.
▶ System is performing to specification at this time.
