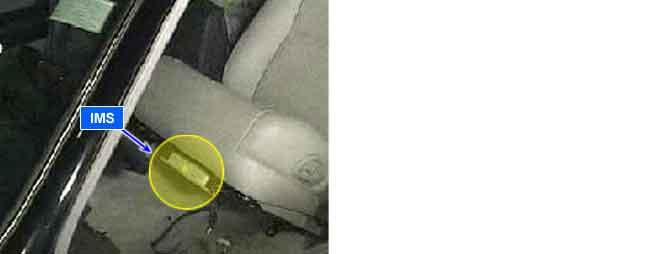

Component Location
General Description

To make system be more efficient, Body Control Module(hereinafter referred to BCM) applies CAN(Controller Area Network) communication system. CAN is a kind of communication system which can make related component share system information with just two line instead of complex individual signal line. It consists of related component and CAN BUS which consists of CAN_high line and CAN_low line. Each component can send and receive information by binary signal via CAN BUS. The related components for BCM are BCM, ADM, DDM and IMS(Seat, S/C)

DTC Description

The ECM sets DTC B1607 if Powerseat ECU haven’t transmitted DATA for 10sec in normal CAN communicating.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

-

● Faulty Powerseat ECU.

● Open/Short circuit in Powerseat ECU Power harness.

● Faulty BCM.

● Poor connection of connected part.

Enable Conditions

-

Threshold value

-

Detecting time

-

FAIL SAFE

-

Schematic Diagram
note
To view Flash content, you need to install the appropriate browser extension
note
To view Flash content, you need to install the appropriate browser extension
Signal Waveform
