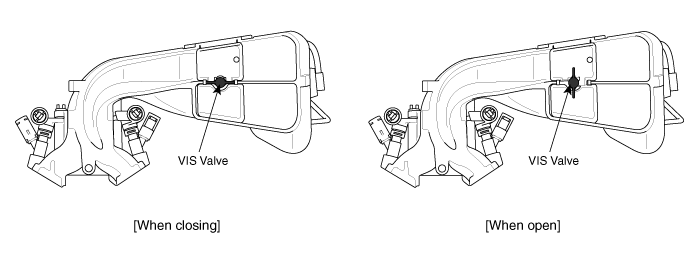

Variable Intake Solenoid (VIS) Valve is installed on the intake manifold and isolates or not the one bank from the other banks to improve the intake efficiency.
Low/Middle Speed: VIS Valve Close → Resonation Effect → Improving Intake Efficiency
High Speed: VIS Valve Open → Improving Intake Inertia Effect → Improving Intake Efficiency
Item | Specification |
Coil Resistance (Ω) | 30.0 ~ 35.0 Ω at 22℃ (71.6℉) |
