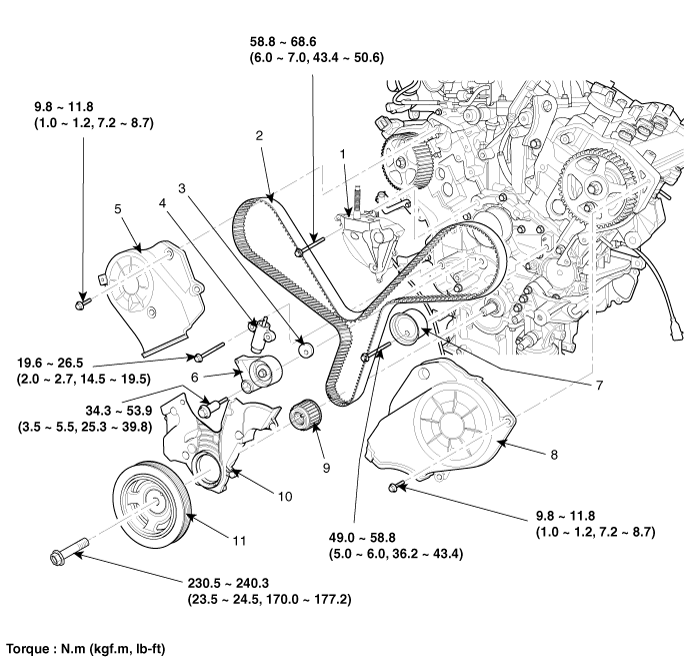

1. Engine support bracket

2. Timing belt

3. Tensioner arm assembly washer

4. Timing belt auto tensioner

5. Bank 1 timing belt upper cover

6. Timing belt tensioner arm assembly

7. Idler pulley

8. Bank 2 timing belt upper cover

9. Crankshaft sprocket

10. Timing belt lower cover

11. Damper pulley

1. Engine support bracket

2. Timing belt

3. Tensioner arm assembly washer

4. Timing belt auto tensioner

5. Bank 1 timing belt upper cover

6. Timing belt tensioner arm assembly

7. Idler pulley

8. Bank 2 timing belt upper cover

9. Crankshaft sprocket

10. Timing belt lower cover

11. Damper pulley
