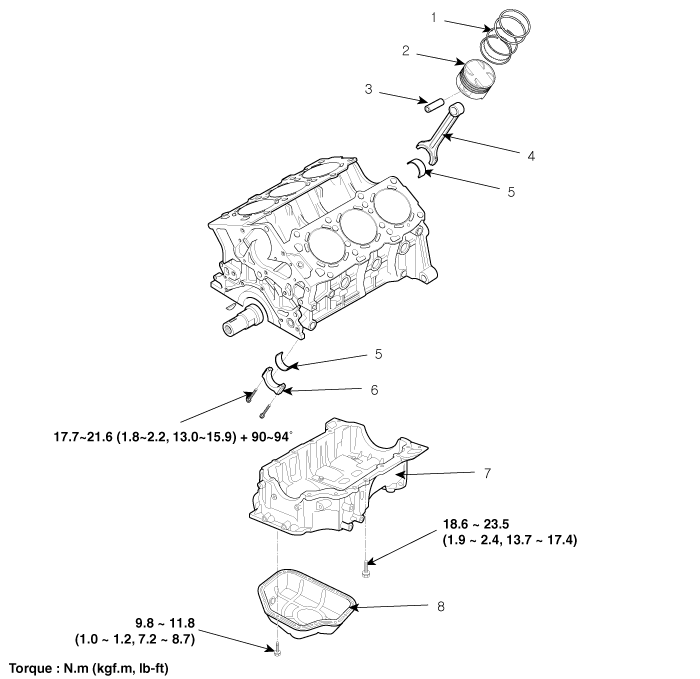

1. Piston ring

2. Piston

3. Piston pin

4. Connecting rod

5. Connecting rod bearing

6. Connecting rod cap

7. Upper oil pan

8. Lower oil pan

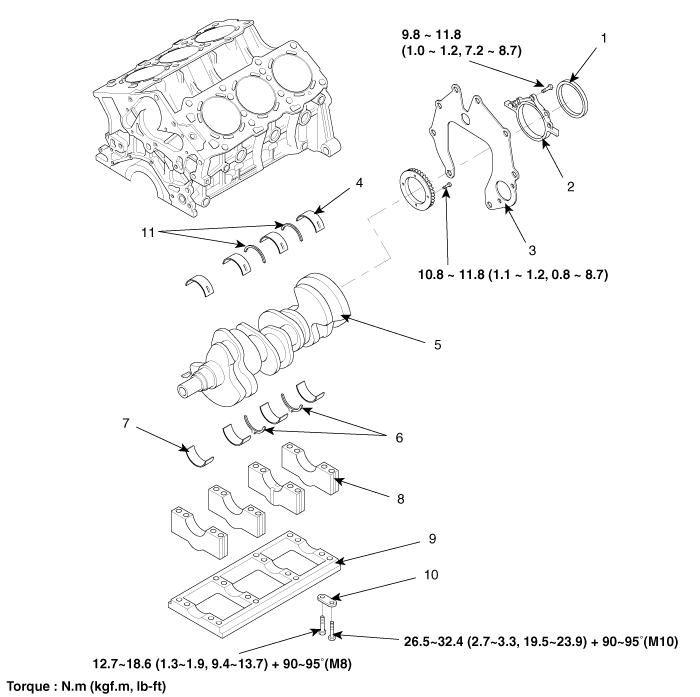

1. Rear oil seal

2. Rear oil seal case

3. Rear plate

4. Crankshaft upper bearing

5. Crankshaft

6. Lower thrust bearing

7. Crankshaft lower bearing

8. Main bearing cap

9. Bearing cap bridge

10. Bearing cap bolt washer

11. Upper thrust bearing
