4.
Is the measured signal waveform O.K ?
 | ▶ Fault is intermittent. Drive the vehicle to meet the enable condition for the DTC. and go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Timing Mark Inspection" procedure as follow. |
IG "OFF" and connect scantool.
ENG "ON" and Measure signal waveform at signal terminal of CMPS.
Measure signal waveform at signal terminal of CKPS.
Specification : 17th signal of the CKPS after missing tooth is aligned with the high signal of the CMPS at idle, ECM recognizes that Synchronization between CKPS and CMPS is completed.
※ Refer to Signal Waveform & Data
Is the measured signal waveform O.K ?
| ▶ Fault is intermittent. Drive the vehicle to meet the enable condition for the DTC. and go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Timing Mark Inspection" procedure as follow. |

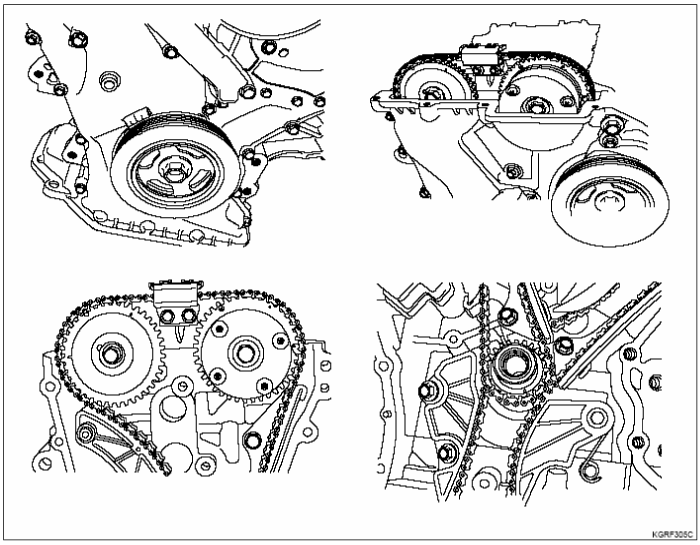

IG "OFF" and check the timing mark is correctly aligned.
Is the timing mark correctly aligned ?
| ▶ Fault is intermittent. Drive the vehicle to meet the enable condition for the DTC. and go to "Verification of Vehicle Repair" procedure. |
| ▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
