1.
Remove both decoration cover (A).
Put on glove to protect your hands
Remove both decoration cover (A).
Remove the glass (A) by lifting it up.
Do not damage the roof panel
Installation is the reverse of removal.
Remove the overhead console.
Confirm the position of guide whether it is closed or not when you remove the motor.
Disconnect the motor connector (A), remove the screws and then remove the motor (B).
Installation is the reverse of removal.
Make sure to initialize the motor.
Open the glass fully.

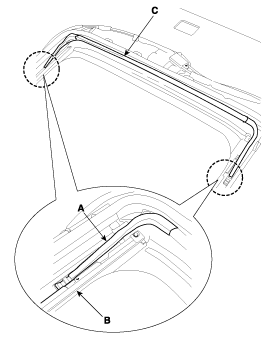

Disconnect the deflector link (A) from the frame (B), and then remove the deflector (C).
Installation is the reverse of removal.
Remove the follows parts.
Front and rear door scuff trim.
Front, center and rear pillar trim.
Headlining.
Sunroof glass.

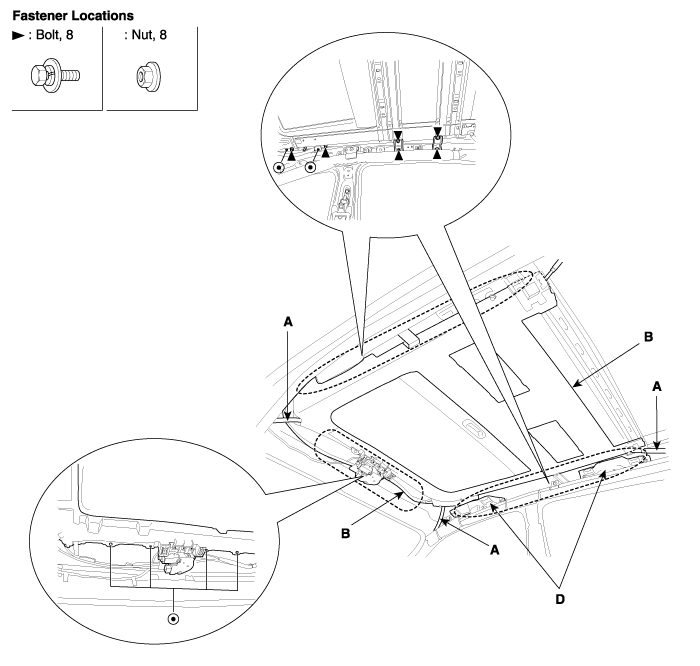

Disconnect the drain tubes (A) and motor connector.
Remove the assist handle bracket (D).
After loosening the mounding bolts and nuts, remove the sunroof assembly (B).
Take care not to scratch the interior trims and other Parts.
Installation is the reverse of removal.
Remove the sunroof assembly.
Remove the motor.
Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.
Remove the guide (A) and slide (B).
Installation is the reverse of removal.
Make sure to align the slide with the center of "A" and "B"
Make sure to initialize the motor.
Remove the sunroof assembly.

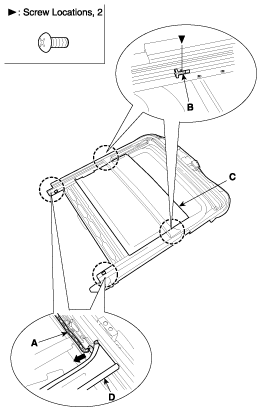

Remove the drip link (A) and sunshade stopper (B).
Remove the sunshade (C) and drip rail (D).
Installation is the reverse of removal.
Check that the glass has been installed.
Finished height adjustment.
Push the up switch. (Keep on pushing the switch)
the slide moved 5mm forward after 15 seconds.
After moving the slide 5mm forward, turn OFF the switch and push the UP switch (Keeping on pushing the switch with continuous operation)
If the operation above is normal condition, the sunroof once and closes.
When the sunroof is closed completely, turn OFF the UP switch initialize the motor completely.
First operation the vehicle after manufacture it.
Initial value is erased or damaged because of short power electric discharge during operation.
After using the manual handle.
Use the sunroof emergency handle to close and open the sunroof manually for the following case only
To close the sunroof before driving a vehicle in a rainy day or on the highway if the sunroof cannot be closed due to failure of the sunroof motor or controller.
Operating method
Remove the overhead console
Push the emergency handle up into the hexagonal drive (A) of the sunroof motor. You must push hard enough to disengage the motor clutch; otherwise the emergency handle will slip due to incomplete fit in the motor.
Carefully turn the emergency handle clockwise to close the sunroof.
After closing the sunroof, wiggle the handle back and forth as you remove the tool from the motor, to ensure the motor clutch reengages.
A 5mm hex socket may be used in place of the emergency handle, with a” Speeder” type handle.
Do not use power tools to operate the sunroof.
Damage to the components may occur.
