ECM Terminal And Input/Output signal
ECM Terminal Function

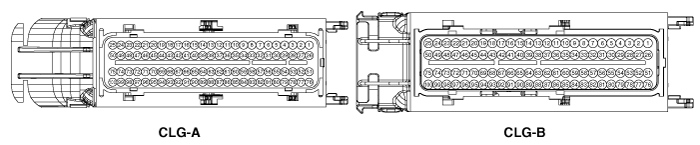

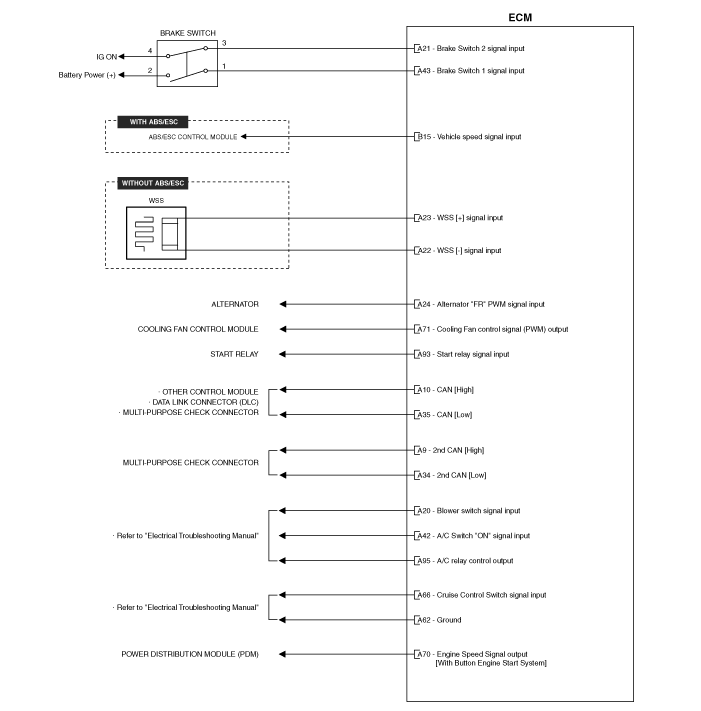

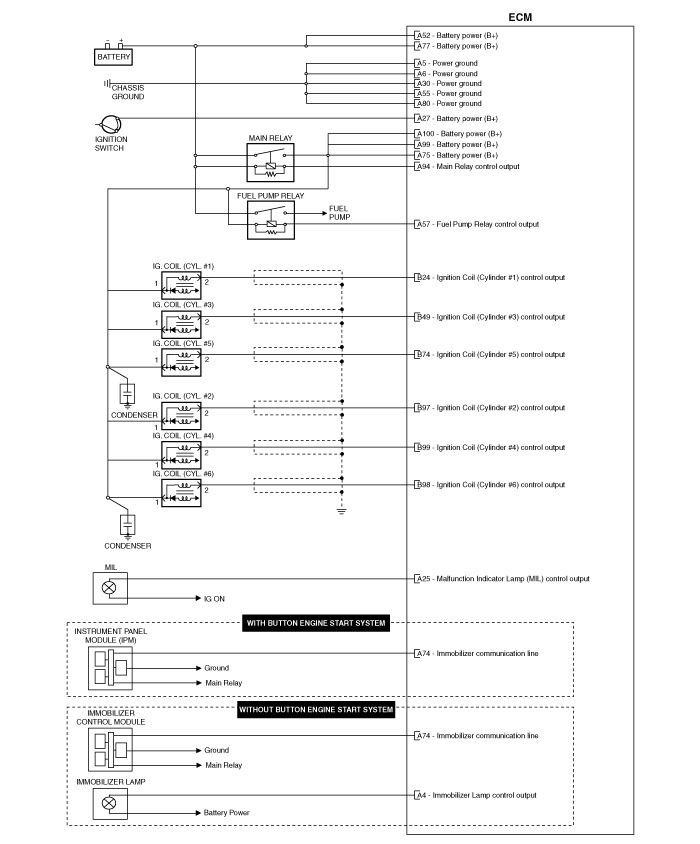

Connector [CLG-A]

Pin No.

Description

Connected to

1

-



2

-



3

-



4

Immobilizer lamp control output

Immobilizer lamp [Without Button Engine Start System]

5

Power ground

Chassis ground

6

Power ground

Chassis ground

7

-



8

-



9

2nd CAN [High]

Multi-purpose check connector

10

CAN [High]

Data Link Connector (DLC), Multi-purpose check connector, Other control module

11

-

12

-



13

-



14

Sensor ground

Accelerator Position Sensor (APS) 1

15

Sensor ground

A/C Pressure Transducer (APT)

Power Steering Pressure Sensor (PSPS)

16

-

17

-

18

-

19

-



20

Blower Switch signal input

A/C Thermal switch

21

Brake Switch 2 signal input

Brake Switch 2

22

Wheel Speed Sensor (WSS) [-] signal input [Without ABS/ESC]

Wheel Speed Sensor (WSS)

23

Wheel Speed Sensor (WSS) [+] signal input [Without ABS/ESC]

Wheel Speed Sensor (WSS)

24

Alternator "FR" PWM signal input

Alternator

25

Malfunction Indicator Lamp (MIL) control output

Malfunction Indicator Lamp (MIL)

26

-



27

Battery power (B+)

Ignition switch

28

-



29

-



30

Power ground

Chassis ground

31

-



32

-



33

-



34

2nd CAN [Low]

Multi-purpose check connector

35

CAN [Low]

Data Link Connector (DLC), Multi-purpose check connector, Other control module

36

-



37

Sensor ground

Power Steering Pressure Sensor (PSPS)

38

Accelerator Position Sensor (APS) 1 signal input

Accelerator Position Sensor (APS) 1

39

-



40

-



41

-

42

A/C Switch "ON" signal input

A/C Request switch

43

Brake Switch 1 signal input

Brake Switch 1

44

-



45

-



46

-



47

-



48

-



49

-



50

-



51

-



52

Battery power (B+)

Battery

53

-



54

-



55

Power ground

Chassis ground

56

-



57

Fuel Pump Relay control output

Fuel Pump Relay

58

-



59

Sensor ground

Accelerator Position Sensor (APS) 2

60

Sensor ground

Accelerator Position Sensor (APS) 1

61

-

62

Ground

Cruise Control Switch

63

Sensor ground

A/C Pressure Transducer (APT)

64

-



65

-

66

Cruise Control Switch signal input

Cruise Control Switch

67

A/C Pressure Transducer (APT) signal input

A/C Pressure Transducer (APT)

68

Accelerator Position Sensor (APS) 2 signal input

Accelerator Position Sensor (APS) 2

69

Power Steering Pressure Sensor (PSPS) signal input

Power Steering Pressure Sensor (PSPS)

70

Engine speed signal output [With Button Engine Start System]

Power Distribution Module (PDM)

71

Cooling Fan Control signal (PWM) output

Cooling Fan Control Module

72

-



73

-



74

Immobilizer communication line

Immobilizer control unit [Without Button Engine Start System]

Instrument panel module [With Button Engine Start System]

75

Battery power (B+)

Main Relay

76

-



77

Battery power (B+)

Battery

78

-



79

-



80

Power ground

Chassis ground

81

-



82

-



83

-



84

-



85

-



86

-



87

-



88

-



89

-



90

Sensor power (+5V)

Accelerator Position Sensor (APS) 2

91

-

92

-



93

Start Motor Relay control output

Start Motor Relay

94

Main Relay control output

Main Relay

95

A/C Compressor Relay control output

A/C Compressor Relay

96

Canister Close Valve (CCV) control output

Canister Close Valve (CCV)

97

-



98

-



99

Battery power (B+)

Main Relay

100

Battery power (B+)

Main Relay

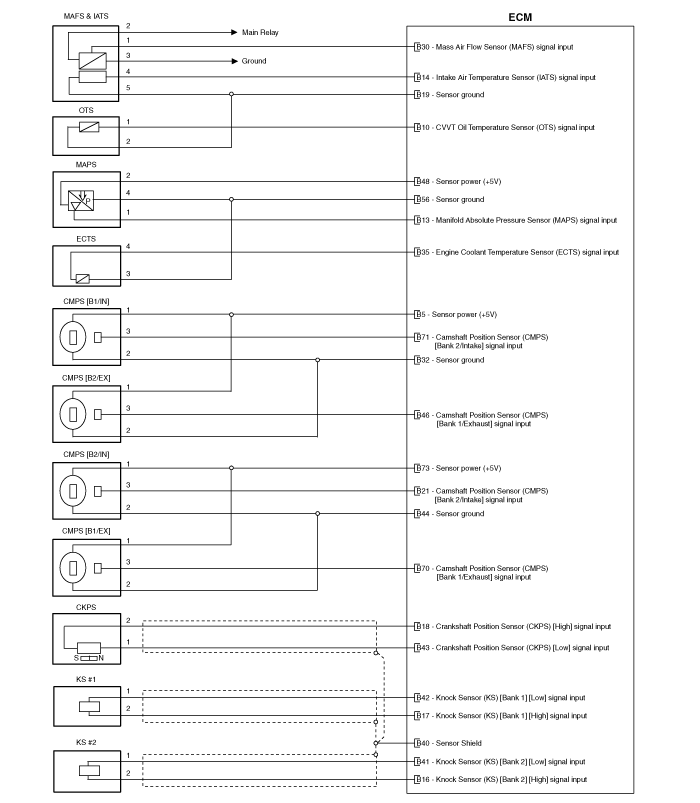

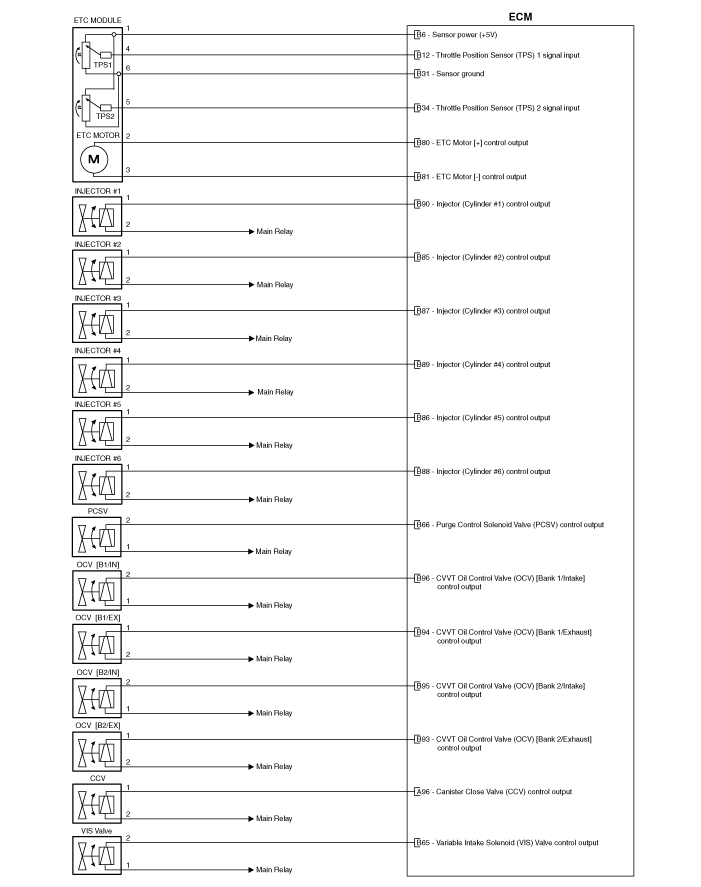

Connector [CLG-B]

Pin No.

Description

Connected to

1

-



2

-



3

-



4

-



5

Sensor power (+5V)

Camshaft Position Sensor (CMPS) [Bank 1/Intake]

Camshaft Position Sensor (CMPS) [Bank 2/Exhaust]

6

Sensor power (+5V)

Throttle Position Sensor (TPS)

7

Throttle Position Sensor (TPS) PWM output

8

Crank request

Power Distribution Module (PDM)

9

-



10

CVVT Oil Temperature Sensor (OTS) signal input

CVVTOil Temperature Sensor (OTS)

11

-



12

Throttle Position Sensor (TPS) 1 signal input

Throttle Position Sensor (TPS) 1

13

Manifold Absolute Pressure Sensor (MAPS) signal input

Manifold Absolute Pressure Sensor (MAPS)

14

Intake Temperature Sensor (IATS) signal input

Intake Temperature Sensor (IATS)

15

Vehicle speed signal input [With ABS/ESC]

ABS/ESC Control Module

16

Knock Sensor (KS) [Bank 2] signal input

Knock Sensor (KS) [Bank 2]

17

Knock Sensor (KS) [Bank 1] signal input

Knock Sensor (KS) [Bank 1]

18

Crankshaft Position Sensor (CKPS) [High] signal input

Crankshaft Position Sensor (CKPS)

19

Sensor ground

CVVTOil Temperature Sensor (OTS)

20

-



21

Camshaft Position Sensor (CMPS) [Bank 2/Intake] signal input

Camshaft Position Sensor (CMPS) [Bank 2/Intake]

22

-



23

-

24

Ignition Coil (Cylinder #1) control output

Ignition Coil (Cylinder #1)

25

-



26

-



27

-



28

-



29

-



30

Mass Air Flow Sensor (MAFS) signal input

Mass Air Flow Sensor (MAFS)

31

Sensor ground

Throttle Position Sensor (TPS)

32

Sensor ground

Camshaft Position Sensor (CMPS) [Bank 1/Intake]

Camshaft Position Sensor (CMPS) [Bank 2/Exhaust]

33

Sensor ground

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 2]

34

Throttle Position Sensor (TPS) 2 signal input

Throttle Position Sensor (TPS) 2

35

Engine Coolant Temperature Sensor (ECTS) signal input

Engine Coolant Temperature Sensor (ECTS)

36

-



37

-



38

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] signal input

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]

39

Sensor ground

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]

40

Sensor shield

Knock  Sensor (KS) [Bank 1]

Knock  Sensor (KS) [Bank 2]

41

Sensor ground

Knock Sensor (KS) [Bank 2]

42

Sensor ground

Knock Sensor (KS) [Bank 1]

43

Sensor ground

Crankshaft Position Sensor (CKPS)

44

Sensor ground

Camshaft Position Sensor (CMPS) [Bank 1/Exhaust]

Camshaft Position Sensor (CMPS) [Bank 2/Intake]

45

-

46

Camshaft Position Sensor (CMPS) [Bank 2/Exhaust] signal input

Camshaft Position Sensor (CMPS) [Bank 2/Exhaust]

47

-



48

Sensor power (+5V)

Manifold Absolute Pressure Sensor (MAPS)

49

Ignition Coil (Cylinder #3) control output

Ignition Coil (Cylinder #3)

50

-



51

-



52

-



53

-



54

-



55

-



56

Sensor ground

Manifold Absolute Pressure Sensor (MAPS)

57

-



58

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 2] signal input

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]

59

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] signal input

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]

60

Sensor ground

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]

61

-



62

-



63

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 1] signal input

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 1]

64

Sensor ground

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 1]

65

Variable Intake Solenoid (VIS) Valve control output

Variable Intake Solenoid (VIS) Valve

66

Purge Control Solenid Valve (PCSV) control output

Purge Control Solenid Valve (PCSV)

67

-



68

-



69

-



70

Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] signal input

Camshaft Position Sensor (CMPS) [Bank 1/Exhaust]

71

Camshaft Position Sensor (CMPS) [Bank 1/Intake] signal input

Camshaft Position Sensor (CMPS) [Bank 1/Intake]

72

-



73

Sensor power (+5V)

Camshaft Position Sensor (CMPS) [Bank 1/Exhaust]

Camshaft Position Sensor (CMPS) [Bank 2/Intake]

74

Ignition Coil (Cylinder #5) control output

Ignition Coil (Cylinder #5)

75

-



76

-



77

-



78

-



79

-



80

ETC Motor [High] control output

ETC Motor

81

ETC Motor [Low] control output

ETC Motor

82

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] heater control output

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]

83

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 2] heater control output

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 2]

84

-



85

Injector (Cylinder #2) control output

Injector (Cylinder #2)

86

Injector (Cylinder #5) control output

Injector (Cylinder #5)

87

Injector (Cylinder #3) control output

Injector (Cylinder #3)

88

Injector (Cylinder #6) control output

Injector (Cylinder #6)

89

Injector (Cylinder #4) control output

Injector (Cylinder #4)

90

Injector (Cylinder #1) control output

Injector (Cylinder #1)

91

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] heater control output

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]

92

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 1] heater control output

Heated Oxygen Sensor (HO2S) [Bank 2/Sensor 1]

93

CVVT Oil Control Valve (OCV) [Bank 2/Exhaust] control output

CVVT Oil Control Valve (OCV) [Bank 2/Exhaust]

94

CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output

CVVT Oil Control Valve (OCV) [Bank 1/Exhaust]

95

CVVT Oil Control Valve (OCV) [Bank 2/Intake] control output

CVVT Oil Control Valve (OCV) [Bank 2/Intake]

96

CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output

CVVT Oil Control Valve (OCV) [Bank 1/Intake]

97

Ignition Coil (Cylinder #2) control output

Ignition Coil (Cylinder #2)

98

Ignition Coil (Cylinder #6) control output

Ignition Coil (Cylinder #6)

99

Ignition Coil (Cylinder #4) control output

Ignition Coil (Cylinder #4)

100

-

ECM Terminal Input/Output Signal
Connector [CLG-A]

Pin No.

Description

Condition

Type

Level

1

-







2

-







3

-







4

Immobilizer Lamp Control output

Lamp ON

DC

Max. 1.1V

Lamp OFF

Battery voltage

5

Power ground

Idle

DC

Max. 150mV

6

Power ground

Idle

DC

Max. 150mV

7

-







8

-







9

2nd CAN [High]

RECESSIVE

Pulse

2.0 ~ 3.0V

DOMINANT

2.75 ~ 4.5V

10

1st CAN [High]

RECESSIVE

Pulse

2.0 ~ 3.0V

DOMINANT

0.5 ~ 2.25V

11

-

12

-







13

-







14

Sensor ground

Idle

DC

Max. 150mV

15

Sensor ground

Idle

DC

Max. 150mV

16

-

17

-







18

-

19

-







20

Blower Switch signal input

S/W ON

DC

Battery voltage

S/W OFF

DC

Max. 0.5V

21

Brake Switch 2 signal input

BrakeON

DC

Battery voltage

BrakeOFF

Max. 0.5V

22

Wheel Speed Sensor (WSS) [-] signal input [Without ABS/ESC]







23

Wheel Speed Sensor (WSS) [+] signal input [Without ABS/ESC]







24

Alternator "FR" PWM signal input

Idle

PWM

High:Battery voltage

Low:Max. 1.5V

133 <Frequency< 200Hz

5 <Duty< 95%

25

Malfunction Indicator Lamp (MIL) control output

 Lamp ON

DC

Max. 0.5V

 Lamp OFF

Battery voltage

26

-







27

Battery power (B+)

IG OFF

DC

Max. 1.0V

IG ON

Battery voltage

28

-







29

-







30

Power ground

Idle

DC

Max. 150mV

31

-







32

-







33

-







34

2nd CAN [Low]

RECESSIVE

Pulse

2.0 ~ 3.0V

DOMINANT

0.5 ~ 2.25V

34

1st CAN [Low]

RECESSIVE

Pulse

2.0 ~ 3.0V

DOMINANT

0.5 ~ 2.25V

36

-







37

Sensor ground

Idle

DC

Max. 150mV

38

Accelerator Position Sensor (APS) 1 signal input

C.T

DC

0.58 ~ 0.93V

W.O.T

3.85 ~ 4.35V

39

-







40

-







41

-

42

A/C Switch "ON" signal input

A/C OFF

DC voltage

Max. 0.5V

A/C ON

Batteryvoltage

43

Brake Switch 1 signal input

Brake ON

DC voltage

Batteryvoltage

Brake OFF

Max. 0.5 V

44

-







45

-







46

-







47

-







48

-







49

-







50

-







51

-







52

Battery power (B+)

Idle

DC

Battery voltage

53

-







54

-







55

Power ground

Idle

DC

Max. 150mV

56

-







57

Fuel Pump Relay control output

Relay ON

DC

Max. 1.1V

Relay OFF

Battery voltage

58

-

59

Sensor ground

Idle

DC

Max. 150mV

60

Sensor ground

Idle

DC

Max. 150mV

61

-

62

Ground

Idle

DC

Max. 150mV

63

Sensor ground

Idle

DC

Max. 150mV

64

-







65

-

66

Cruise Control Switch signal input

67

A/C Pressure Transducer (APT) signal input

A/C ON

DC

0.5 ~ 4.5V

68

Accelerator Position Sensor (APS) 2 signal input

C.T

DC

0.29 ~ 0.46V

W.O.T

1.93 ~ 2.18V

69

Power Steering Pressure Sensor (PSPS) signal input

Neutral

Analog

0 ~ 0.5V

Full-Turn

70

Engine speed signal output [With Button Engine Start System]

71

Cooling Fan control signal(PWM) output

Idle

Pulse

High:Battery voltage

Low:Max. 0.5V

Frequency= 300Hz

0 <Duty< 100%

72

-







73

-







74

Immobilizer communication line

When transmitting

DC

High:Battery voltage×80%

Low:Battery voltage×20%

When receiving

High:Battery voltage×70%

Low:Battery voltage×30%

75

Battery power (B+)

Relay OFF

DC

Max. 1.0V

Relay ON

Battery voltage

76

-







77

Battery power (B+)

Idle

DC

Battery voltage

78

-







79

-







80

Power ground

Idle

DC

Max. 150mV

81

-







82

-







83

-







84

-







85

-







86

-







87

-







88

-







89

-







90

Sensor power (+5V)

Idle

DC

4.9 ~ 5.1V

91

-







92

-







93

Start Motor Relay control output







94

Main Relay control output

Relay ON

DC

Max. 1.7V

Relay OFF

Battery voltage

95

A/C Compressor Relay control output

Relay ON

DC

Max. 1.7V

Relay OFF

Battery voltage

96

Canister Close Valve (CCV) control output

Open

DC

Battery Voltage

Close

Max. 1.0V

97

-







98

-







99

Battery power (+5V)

Relay OFF

DC

Max. 1.0V

Relay ON

Battery voltage

100

Battery power (+5V)

Relay OFF

DC

Max. 1.7V

Relay ON

Battery voltage

Connector [CLG-B]

Pin No.

Description

Condition

Type

Level

1

-







2

-







3

-







4

-







5

Sensor power (+5V)

Idle

DC

4.9 ~ 5.1V

6

Sensor power (+5V)

Idle

DC

4.9 ~ 5.1V

7

Throttle Position Sensor (TPS) PWM output







8

Crank request







9

-







10

CVVT Oil Air Temperature Sensor (OTS) signal input

Idle

DC

0.15(150℃) ~ 4.85V(-40℃)

11

-







12

Throttle Position Sensor (TPS) 1 signal input

C.T

DC

0.25 ~ 0.9V

W.O.T

Min. 4.0V

13

Manifold Absolute Pressure Sensor (MAPS) signal input

Idle

DC

4.43V (107kPa)

0.75V (20kPa)

14

Intake Air Temperature Sensor (IATS) signal input

Idle

DC

4.85V (-40℃)

0.07V (150℃)

15

Vehicle speed signal input [With ABS/ESC]

Running

Pulse

High:Min. 4.0V

Low:Max. 1.1V

6.4 <Frequency< 1,534Hz

Duty= 50%

16

Knock  Sensor (KS) [Bank 2] [High] signal input

Knocking

Variable

Frequency

-0.3 ~ 0.3V

Normal

Frequency

0V

17

Knock  Sensor (KS) [Bank 2] [High] signal input

Knocking

Variable

Frequency

-0.3 ~ 0.3V

Normal

Frequency

0V

18

Crankshaft Position Sensor (CKPS) [High] signal input

Idle

SINE wave

0.4 < Vp_p < 200V

55 <Frequency< 7,000Hz

19

Sensor ground

Idle

DC

Max. 150mV

20

-







21

Camshaft Position Sensor (CMPS) [Bank 2/ Intake] signal input

Idle

Pulse

High: 3.2 ~ Vcc

Low:Max. 0.7V

0 <Frequency< 350Hz

22

-







23

-

24

Ignition coil (Cylinder #1) control output

Idle

Pulse

Vpeak = 400V

0 <Frequency< 58.3Hz

25

-







26

-







27

-







28

-







29

-







30

Mass Air Flow Sensor (MAFS) signal input

Idle

Pulse

High:Min. 4.5V

Low:Max. 0.6V

768 <Frequency< 12,032Hz

Duty= 50%

31

Sensor ground

Idle

DC

Max. 150mV

32

Sensor ground

Idle

DC

Max. 150mV

33

Sensor ground

Idle

DC

Max. 150mV

34

Throttle Position Sensor (TPS) 2 signal input

C.T

DC

Min. 4.0V

W.O.T

0.25 ~ 0.9V

35

Engine Coolant Temperature Sensor (ECTS) signal input

Idle

DC

0 ~ 5.0V

36

-







37

-







38

Heated Oxygen Sensor (HO2S) [Bank 1/ Sensor 1] signal input

RICH

DC

0.75 ~ 0.92V

LEAN

0.04 ~ 0.1V

39

Sensor ground

Idle

DC

Max. 150mV

40

Sensor shield

Idle

DC

Max. 150mV

41

Sensor ground

Idle

DC

Max. 150mV

42

Sensor ground

Idle

DC

Max. 150mV

43

Sensor ground

Idle

DC

Max. 150mV

44

Sensor ground

Idle

DC

Max. 150mV

45

-

46

Camshaft Position Sensor (CMPS) [Bank 2/Exhaust] signal input

Idle

Pulse

High: 3.2 ~ Vcc

Low:Max. 0.7V

0 <Frequency< 350Hz

47

-







48

Sensor power (+5V)

Idle

DC

4.9 ~ 5.1V

49

Ignition coil (Cylinder #3) control output

Idle

Pulse

Vpeak = 400V

0 <Frequency< 58.3Hz

50

-







51

-







52

-







53

-







54

-







55

-







56

Sensor ground

Idle

DC

Max. 150mV

57

-







58

Heated Oxygen Sensor (HO2S) [Bank 2/ Sensor 2] signal input

RICH

DC

0.75 ~ 0.92V

LEAN

0.04 ~ 0.1V

59

Heated Oxygen Sensor (HO2S) [Bank 1/ Sensor 2] signal input

RICH

DC

0.75 ~ 0.92V

LEAN

0.04 ~ 0.1V

60

Sensor ground

Idle

DC

Max. 150mV

61

-







62

-







63

Heated Oxygen Sensor (HO2S) [Bank 2/ Sensor 1] signal input

RICH

DC

0.75 ~ 0.92V

LEAN

0.04 ~ 0.1V

64

Sensor ground

Idle

DC

Max. 150mV

65

Variable Intake Solenoid (VIS) Valve control output

Active

DC

Max. 1.0V

Inactive

Battery Voltage

66

Purge Control Solenid Valve (PCSV) control output

Idle

Pulse

High:Battery voltage

Low:Max. 1.0V

Frequency= 30Hz

0 <Duty< 100%

67

-







68

-







69

-







70

Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] signal input

Idle

Pulse

High: 3.2 ~ Vcc

Low:Max. 0.7V

0 <Frequency< 350Hz

71

Camshaft Position Sensor (CMPS) [Bank 1/ Intake] signal input

Idle

Pulse

High: 3.2 ~ Vcc

Low:Max. 0.7V

0 <Frequency< 350Hz

72

-







73

Sensor power (+5V)

Idle

DC

4.9 ~ 5.1V

74

Ignition coil (Cylinder #5) control output

Idle

Pulse

Vpeak = 400V

0 <Frequency< 58.3Hz

75

-







76

-







77

-







78

-







79

-







80

ETC Motor [High] control output

Idle

Pulse

High:Battery voltage

Low:Max.1.0V

1,500 <Frequency< 2,400Hz

0 <Duty< 98%

81

ETC Motor [Low] control output

Idle

PWM

Battery voltage

82

Heated Oxygen Sensor (HO2S) [Bank 1/ Sensor 2] heater control output

Idle

PWM

High:Battery voltage

Low:Max. 1.15V

0 <Duty<100%

83

Heated Oxygen Sensor (HO2S) [Bank 2/ Sensor 2] heater control output

Idle

PWM

High:Battery voltage

Low:Max. 1.15V

0 <Duty<100%

84

-







85

Injector (Cylinder #2) control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

0 <Frequency< 58.3Hz

47 < Vpeak < 64V

86

Injector (Cylinder #5) control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

0 <Frequency< 58.3Hz

47 < Vpeak < 64V

87

Injector (Cylinder #3) control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

0 <Frequency< 58.3Hz

47 < Vpeak < 64V

88

Injector (Cylinder #6) control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

0 <Frequency< 58.3Hz

47 < Vpeak < 64V

89

Injector (Cylinder #4) control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

0 <Frequency< 58.3Hz

47 < Vpeak < 64V

90

Injector (Cylinder #1) control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

0 <Frequency< 58.3Hz

47 < Vpeak < 64V

91

Heated Oxygen Sensor (HO2S) [Bank 1/ Sensor 1] heater control output

Idle

PWM

High:Battery voltage

Low:Max. 1.15V

0 <Duty<100%

92

Heated Oxygen Sensor (HO2S) [Bank 2/ Sensor 1] heater control output

Idle

PWM

High:Battery voltage

Low:Max. 1.15V

0 <Duty<100%

93

CVVT Oil Control Valve (OCV) [Bank 2/ Exhaust] control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

Frequency= 128Hz

0 <Duty< 100%

94

CVVT Oil Control Valve (OCV) [Bank 1/ Exhaust] control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

Frequency= 128Hz

0 <Duty< 100%

95

CVVT Oil Control Valve (OCV) [Bank 2/ Intake] control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

Frequency= 128Hz

0 <Duty< 100%

96

CVVT Oil Control Valve (OCV) [Bank 1/ Intake] control output

Idle

PWM

High:Battery voltage

Low:Max. 1.0V

Frequency= 128Hz

0 <Duty< 100%

97

Ignition coil (Cylinder #2) control output

Idle

Pulse

Vpeak = 400V

0 <Frequency< 58.3Hz

98

Ignition coil (Cylinder #6) control output

Idle

Pulse

Vpeak = 400V

0 <Frequency< 58.3Hz

99

Ignition coil (Cylinder #4) control output

Idle

Pulse

Vpeak = 400V

0 <Frequency< 58.3Hz

100

-

Circuit Diagram
Яндекс.Метрика
