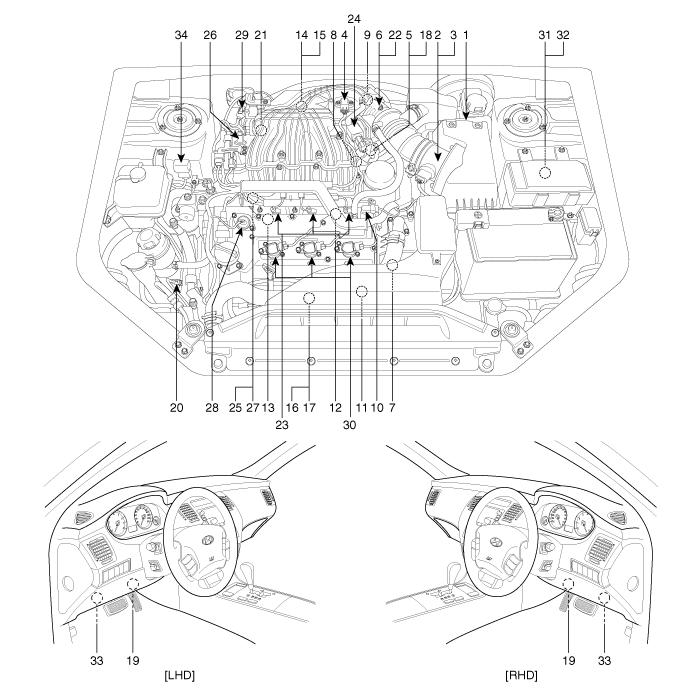

1. Engine Control Module (ECM)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS)
4. Manifold Absolute Pressure Sensor (MAPS)
24. Purge Control Solenoid Valve (PCSV)
5. Engine Coolant Temperature Sensor (ECTS)
18. CVVT Oil Temperature Sensor (OTS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]
22. ETC Motor [integrated into ETC Module]
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
10. Camshaft Position Sensor (CMPS) [Bank 2 / Intake]
11. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust]
12. Knock Sensor (KS) [Bank 1]
13. Knock Sensor (KS) [Bank 2]
14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1]
17. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]
19. Accelerator Position Sensor (APS)
20. A/C Pressure Transducer (APT)
21. Power Steering Pressure Sensor (PSPS)
23. Injector
30. Ignition Coil
25. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
27. CVVT Oil Control Valve (OCV) [Bank 2 / Intake]
26. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
29. Variable Intake Solenoid (VIS) Valve
28. CVVT Oil Control Valve (OCV) [Bank 2 / Exhaust]
31. Main Relay
32. Fuel Pump Relay
