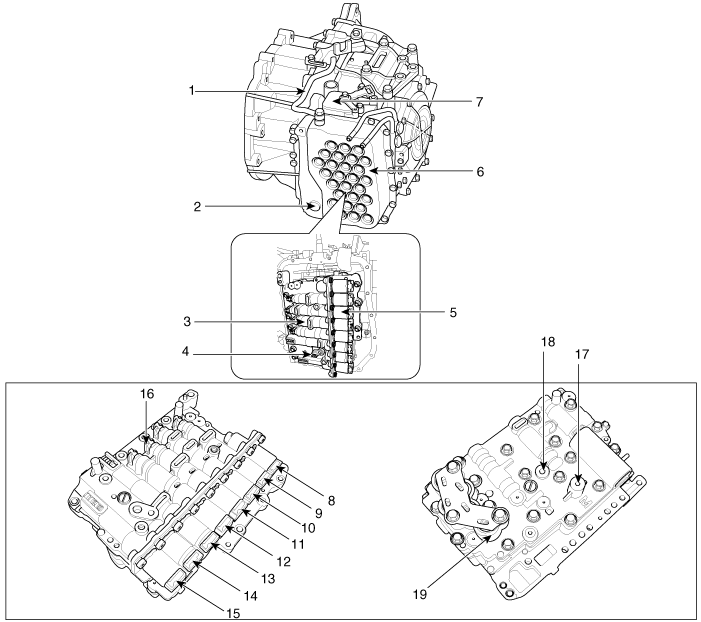

Component Location

1. Air breather hose

2. Oil level plug

3. Valve body assembly

4. Oil temperature sensor

5. Solenoid valve

6. Valve body cover

7. Inhibitor switch

8. T/Con (VFS N/L)

9. 35R(VFS,N/H)

10. 2/6B (VFS,N/L)

11. UD(VFS,N/H)

12. OD(VFS,N/H)

13. SS-B(ON/OFF)

14. SS-A(ON/OFF)

15. LINE pressure(VFS,N/H)

16. PCV adjust screw

17. UD/B pressure

18. LR/B pressure(Low & Reverse Brake)

19. Accumulator
