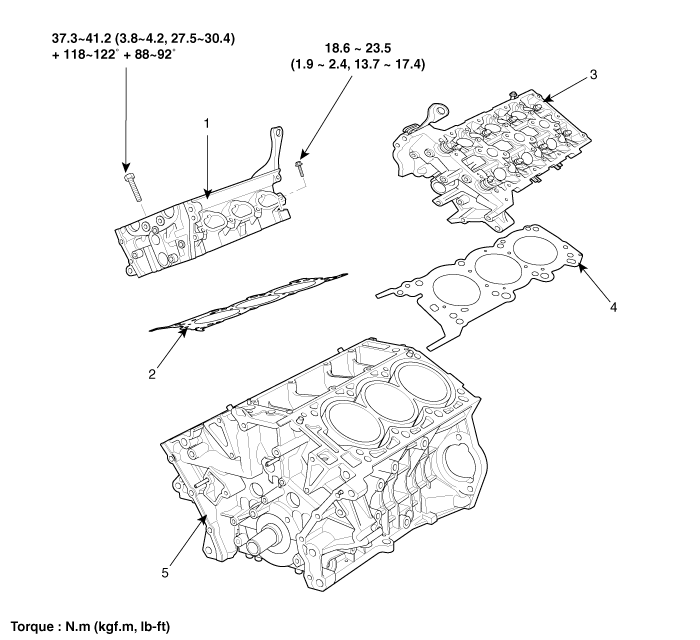

1. RH cylinder head

2. RH cylinder head gasket

3. LH cylinder head

4. LH cylinder head gasket

5. Cylinder block

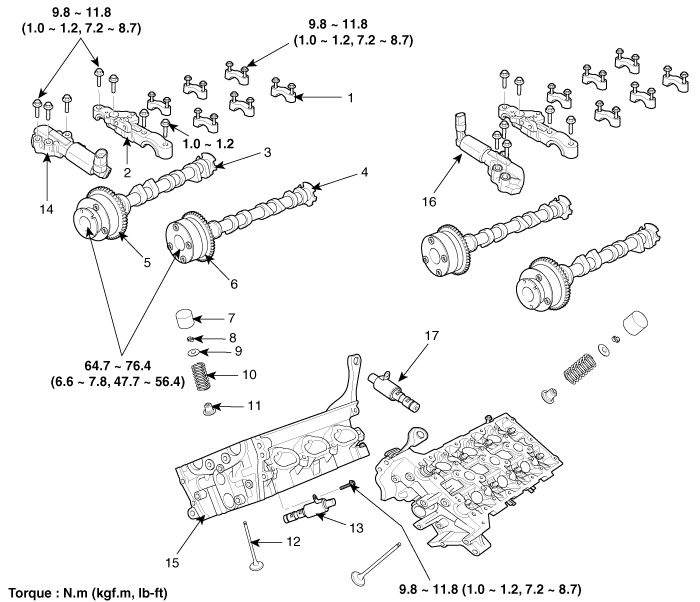

1. Camshaft bearing cap

2. Camshaft thrust bearing cap

3. Exhaust camshaft

4. Intake camshaft

5. Exhaust camshaft CVVT assembly

6. Intake camshaft CVVT assembly

7. MLA

8. Retainer lock

9. Retainer

10. Valve spring

11. Valve stem seal

12. Valve

13. RH exhaust camshaft OCV

14. RH intake camshaft OCV

15. Cylinder head

16. LH intake camshaft OCV

17. LH exhaust camshaft OCV
