Remove the trim.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and Panels.
Installation is the reverse of removal.
Replace any damage clips.

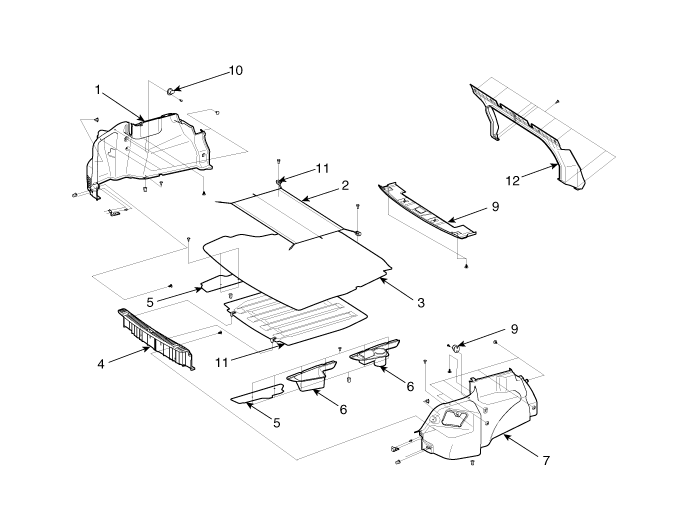

1. Luggage side trim, LH 2. Luggage floor net 3. Luggage covering mat 4. Rear transverse trim 5. Luggage side board 6. Luggage side tray | 7. Luggage side trim, RH 8. Partition upper trim 9. Luggage hook 10. Net mounting hook 11. Luggage covering boald 12. Partition side trim |
