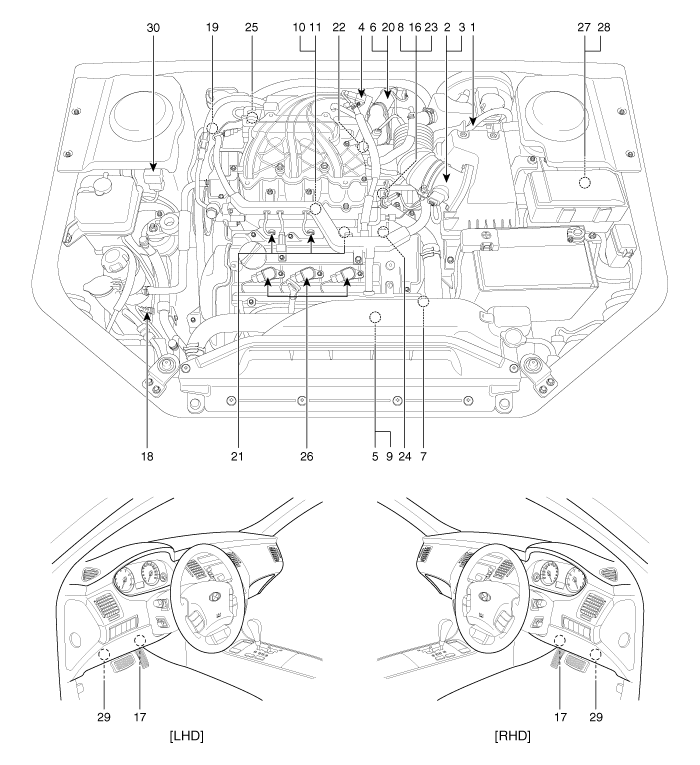

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS)
4. Manifold Absolute Pressure Sensor (MAPS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]
20. ETC Motor [integrated into ETC Module]
22. Purge Control Solenoid Valve (PCSV)
5. Engine Coolant Temperature Sensor (ECTS)
9. Camshaft Position Sensor (CMPS) [Bank 2]
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1]
10. Knock Sensor (KS) [Bank 1]
11. Knock Sensor (KS) [Bank 2]
12. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
13. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
14. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1]
15. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]
16. CVVT Oil Temperature Sensor (OTS)
23. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
24. CVVT Oil Control Valve (OCV) [Bank 2 / Intake]
17. Accelerator Position Sensor (APS)
18. A/C Pressure Transducer (APT)
19. Power Steering Pressure Sensor (PSPS)
21. Injector
26. Ignition Coil
25. Variable Intake Solenoid (VIS) Valve
27. Main Relay
28. Fuel Pump Relay
