Tool (Number and name)
Illustration
Application
09351-4A300
Injector Remover
Removing the injector
09314-27110(14mm)
09314-27120(17mm)
Torque Wrench Socket
Installing the high pressure pipe
Tool (Number and name) | Illustration | Application |
09351-4A300 Injector Remover | | Removing the injector |
09314-27110(14mm) 09314-27120(17mm) Torque Wrench Socket | | Installing the high pressure pipe |
Tool Number | Tool Name |

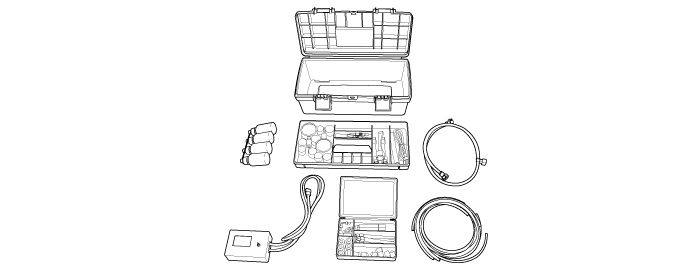

CTR-1000 | Common Rail Tester (Standard kit) |
CRT-1010 | Tool Case |
CRT-1020 | Regulator Valve |
CRT-1021 | Plug (for Delphi) M14mm |
CRT-1022 | Plug (for Bosch) M12mm |
CRT-1023 | Adapter (for Bosch) |
CRT-1030 | Flask ＆ Holder |
CRT-1031 | Visible Tube |
CRT-1032 | Injector Return Hose Adapter |
CRT-1033 | Injector Return Hose Plug |
CRT-1034 | Flushing Tube |
CRT-1035 | Dust Cap |
CRT-1040 | High Pressure Meter |
CRT-1041 | Adapter Connector (for Delphi Old) |
CRT-1042 | Adapter Connector (for Delphi New) |
CRT-1043 | Adapter Connector (for Bosch) |
CRT-1044 | IMV Control Valve |
CRT-1050 | Vacuum Gauge |
CRT-1051 | Pressure Gauge |
CRT-1052 | Gauge Connection Tube |
CRT-1053 | Connection Adapter |
CRT-1054 | Connection Adapter with Hose |
CRT-1055 | Hose Clamp |
CRT-1060 | User's Guide |
* To use this Common Rail Tester, refer to the user's guide included in this kit.  | |
