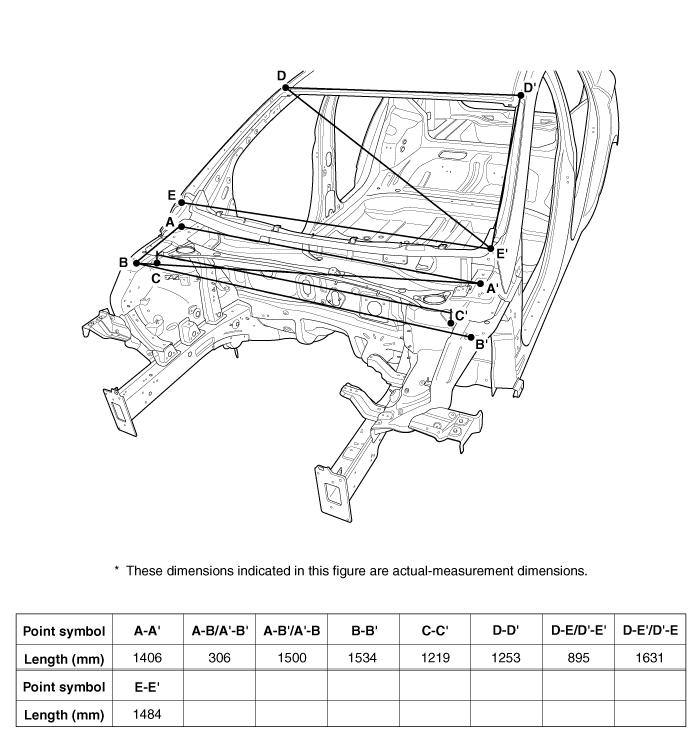

Hood hinge mounting hole (Ø11)
Fender apron upper member tooling hole (Ø9)
Front shock absorber housing cover tooling hole (Ø11)
Front pillar outer panel corner
Front pillar outer panel corner
| | |
Hood hinge mounting hole (Ø11) | Fender apron upper member tooling hole (Ø9) | Front shock absorber housing cover tooling hole (Ø11) |
| | |
Front pillar outer panel corner | Front pillar outer panel corner |
| |  |

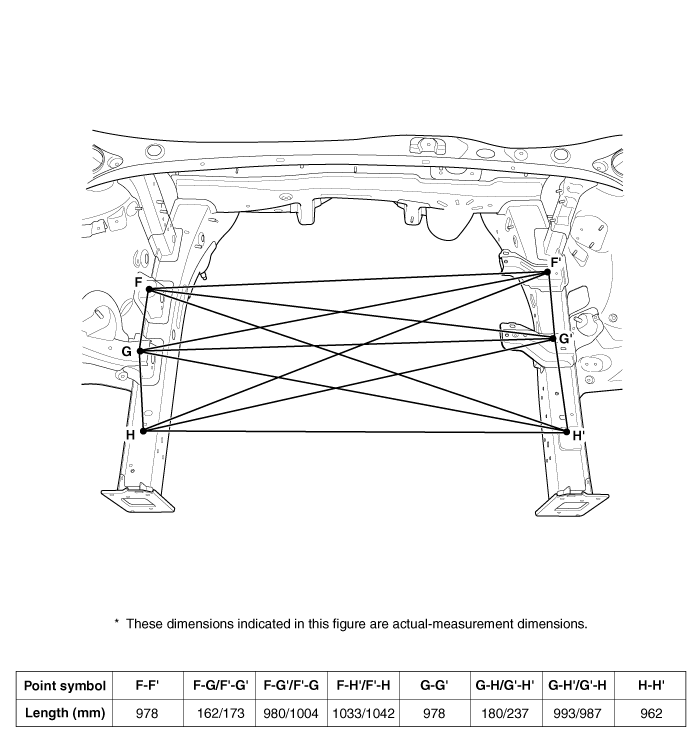

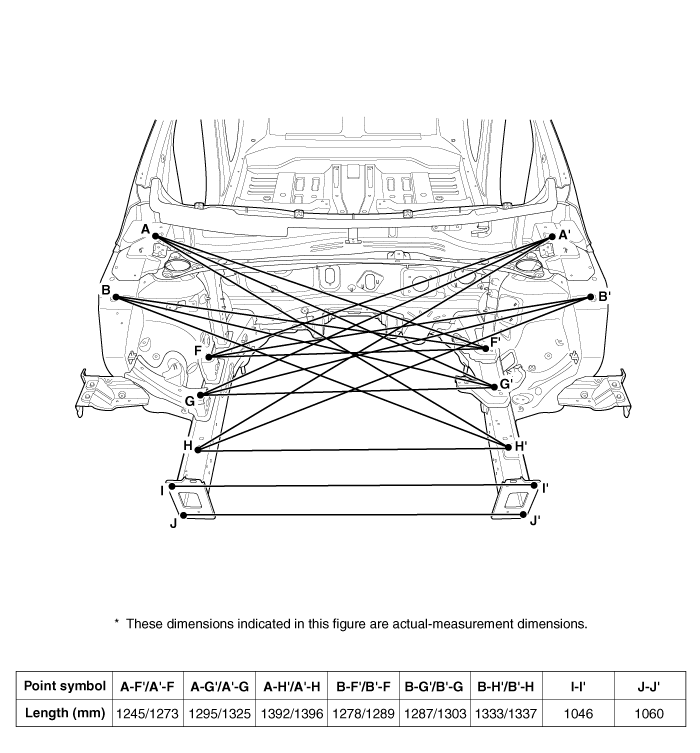

Hood hinge mounting hole (Ø11) | Fender apron upper member tooling hole (Ø9) | Engine mounting bracket hole (Ø11) |
 |  |  |
Transaxle mounting hole (Ø12) | Transaxle mounting hole (Ø15) | Front side member tooling hole (Ø6.6) |
 |  |  |
Front side member tooling hole (Ø6.6) | Front end module mounting hole (Ø11) | Front end module mounting hole (Ø11) |
 | ||
Front end module mounting hole (Ø11) |
| | |
Engine mounting bracket hole (Ø11) | Transaxle mounting hole (Ø12) | Engine mounting bracket hole (Ø15) |
| | |
Transaxle mounting hole (Ø15) | Front side member tooling hole (Ø6.6) | Front side member tooling hole (Ø6.6) |
