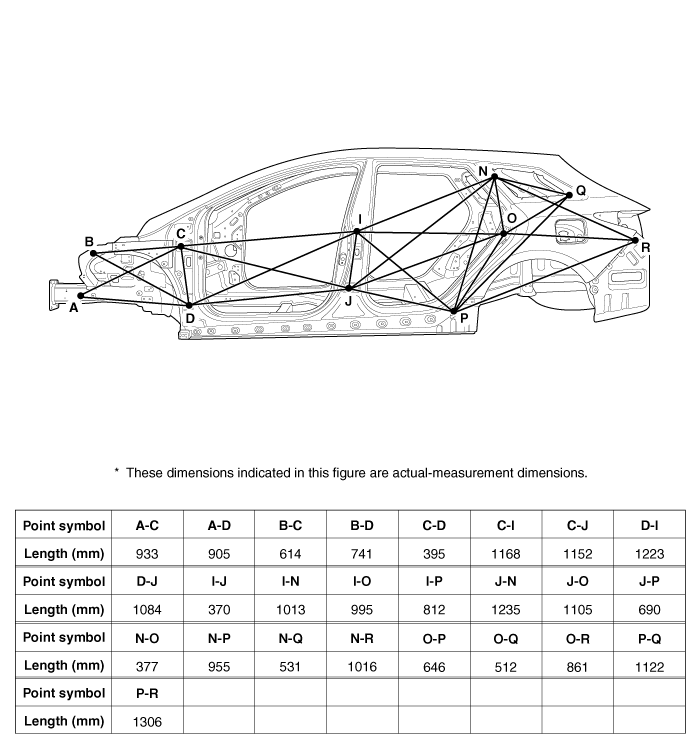

Front side member tooling hole (Ø12)
Fender apron upper member tooling hole (12X7)

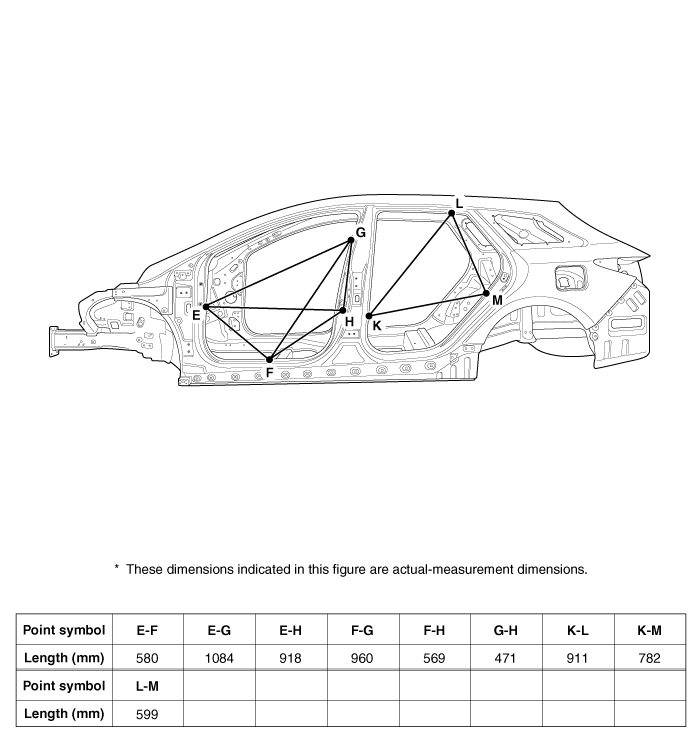

Front door upper hinge mounting hole
(Ø13)
Front door lower hinge mounting hole
(Ø13)
Rear door upper hinge mounting hole
(Ø13)
Rear door lower hinge mounting hole
(Ø13)
Quarter fixed glass mounting hole
(Ø7.5)
Rear door switch mounting hole (Ø10)
Side sill molding mounting hole
(10X10)
Quarter fixed glass mounting hole (Ø9)
Rear bumper mounting hole (8.5X8.5)
