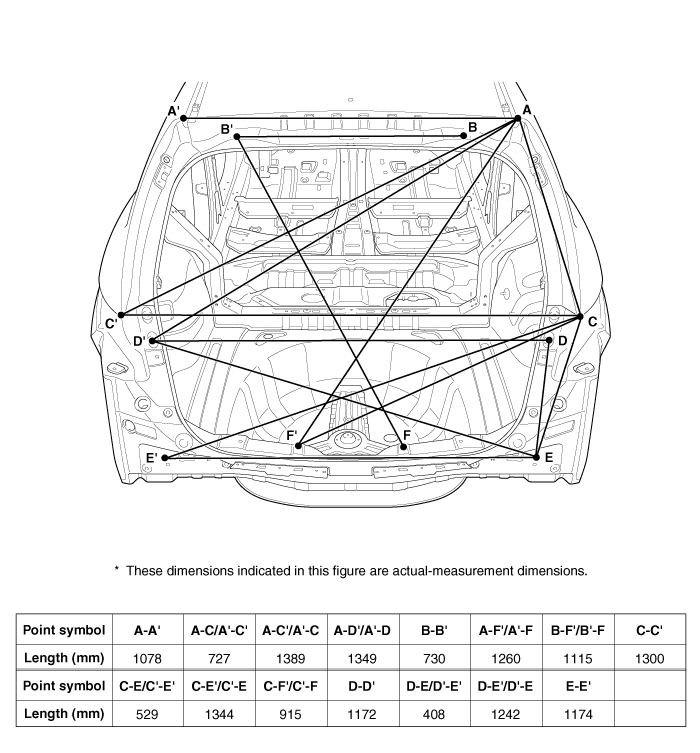

Side outer panel rear corner
Tail gate hinge mounting hole (Ø12)
Side outer panel rear corner
Rear bumper mounting hole (8.5X8.5)
Rear bumper mounting hole (Ø10)
Rear bumper mounting hole (Ø10)
Rear transverse trim mounting hole
(Ø8.5)
| | |
Side outer panel rear corner | Tail gate hinge mounting hole (Ø12) | Side outer panel rear corner |
| | |
Rear bumper mounting hole (8.5X8.5) | Rear bumper mounting hole (Ø10) | Rear bumper mounting hole (Ø10) |
| ||
Rear transverse trim mounting hole (Ø8.5) |
