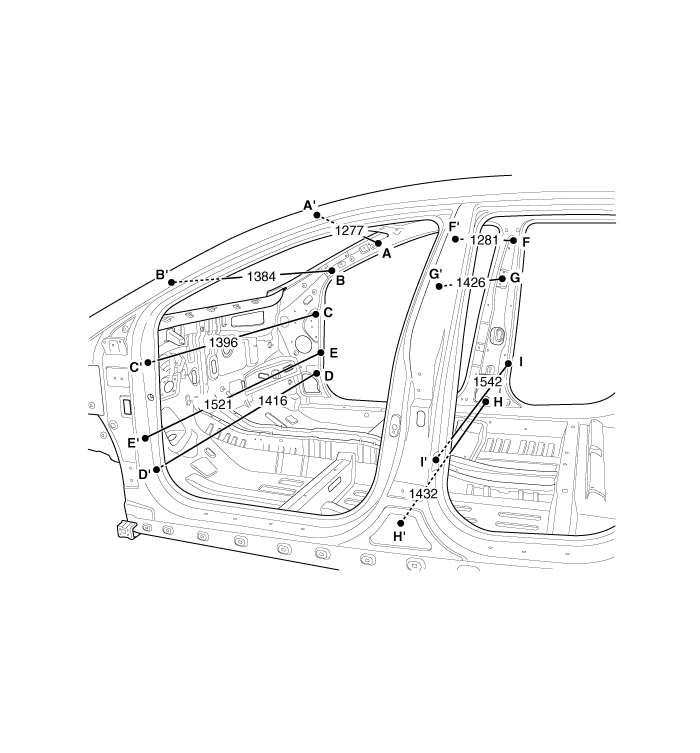

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm ] |
 |  |  |
Front pillar trim mounting hole (Ø8.5) | Curtain airbag mounting hole (Ø7) | Cowl crossbar mounting hole (Ø13) |
 |  |  |
Front pillar inner panel tooling hole (Ø6.6) | Front door checker mounting hole (Ø13) | Seat belt height adjuster mounting hole (Ø17) |
 |  |  |
Seat belt height adjuster mounting hole (Ø17) | Seat belt retractor mounting hole (Ø12) | Rear door checker mounting hole (Ø13) |

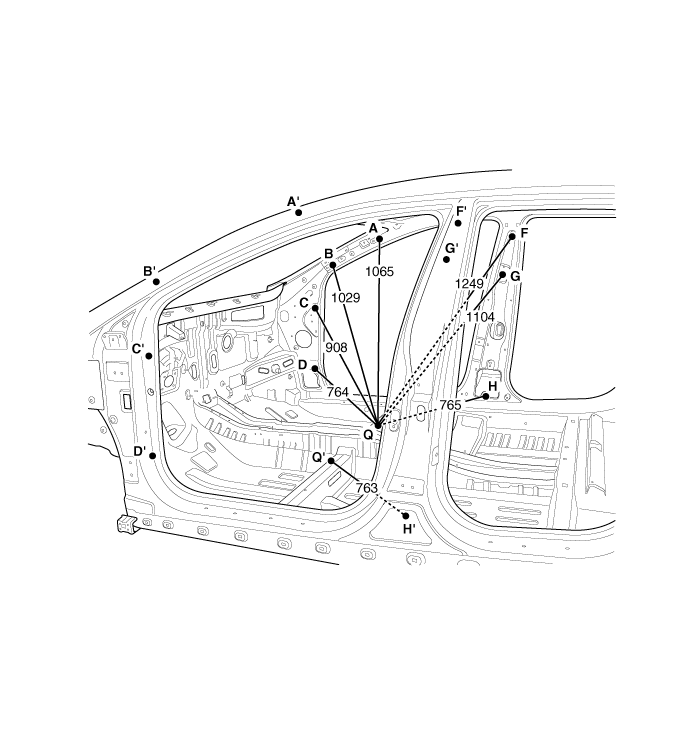

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm ] |
| | |
Front pillar trim mounting hole (Ø8.5) | Curtain airbag mounting hole (Ø7) | Cowl crossbar mounting hole (Ø13) |
| | |
Front pillar inner panel tooling hole (Ø6.6) | Seat belt height adjuster mounting hole (Ø17) | Seat belt height adjuster mounting hole (Ø17) |
|  | |
Seat belt retractor mounting hole (Ø12) | Front seat mounting hole (Ø11) |

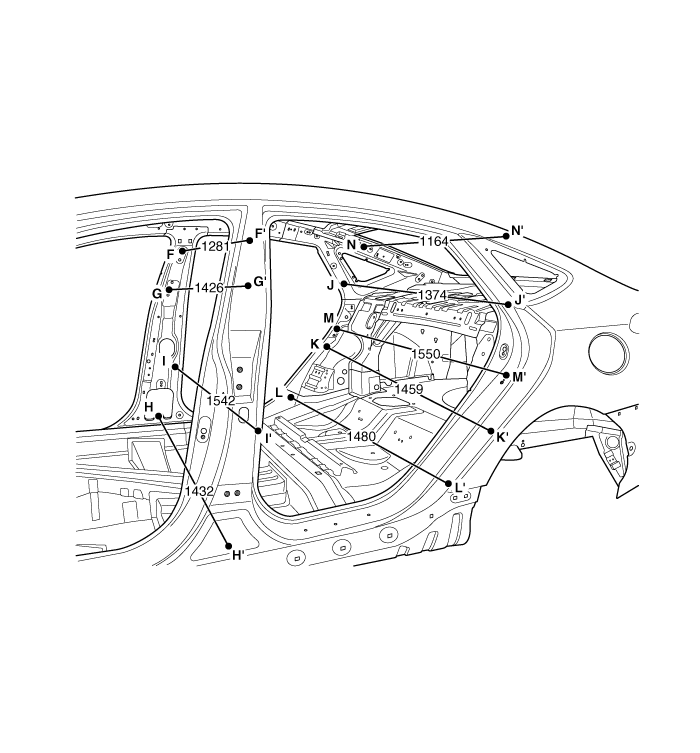

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm ] |
| | |
Seat belt height adjuster mounting hole (Ø17) | Seat belt height adjuster mounting hole (Ø17) | Seat belt retractor mounting hole (Ø12) |
|  |  |
Rear door checker mounting hole (Ø13) | Rear pillar trim mounting hole (Ø8.4) | Quarter inner lower panel tooling hole (Ø12) |
 |  |  |
Quarter inner lower panel tooling hole (Ø8) | Rear door striker mounting hole (Ø13) | Rear pillar trim mounting hole (Ø8.4) |

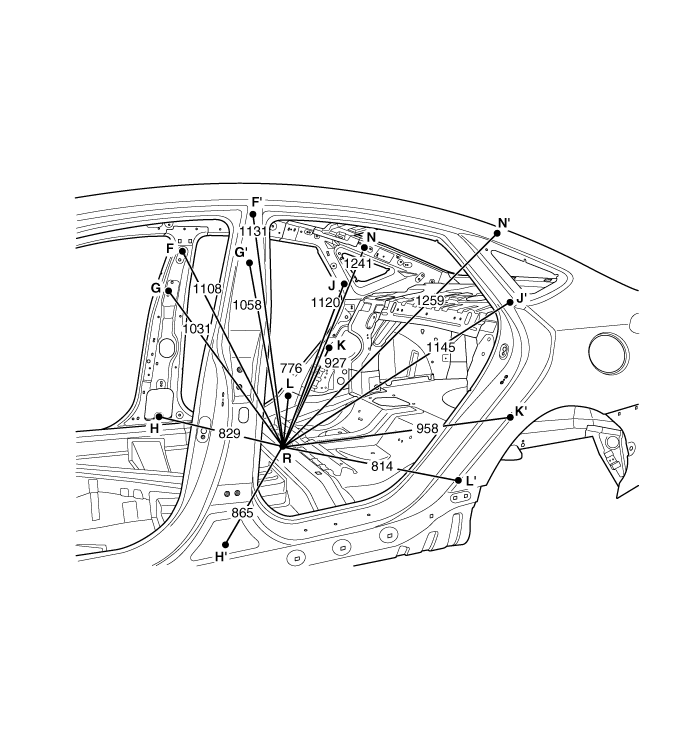

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm ] |
| | |
Seat belt height adjuster mounting hole (Ø17) | Seat belt height adjuster mounting hole (Ø17) | Seat belt retractor mounting hole (Ø12) |
| | |
Rear pillar trim mounting hole (Ø8.4) | Quarter inner lower panel tooling hole (Ø12) | Quarter inner lower panel tooling hole (Ø8) |
|  | |
Rear pillar trim mounting hole (Ø8.4) | Rear floor panel tooling hole (Ø15) |
