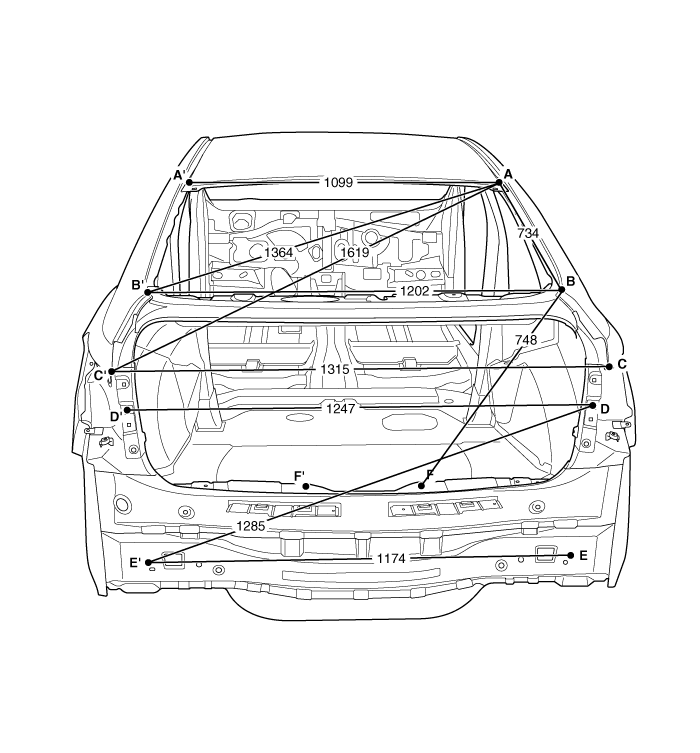

Roof panel rear corner
Side outer panel rear corner
Side outer panel rear corner
Rear bumper mounting hole (8.5X8.5)
Rear bumper mounting hole (Ø17)
Rear bumper mounting hole (Ø17)
Rear transverse trim mounting hole
(Ø8.4)
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm ] |
| | |
Roof panel rear corner | Side outer panel rear corner | Side outer panel rear corner |
| | |
Rear bumper mounting hole (8.5X8.5) | Rear bumper mounting hole (Ø17) | Rear bumper mounting hole (Ø17) |
| ||
Rear transverse trim mounting hole (Ø8.4) |
