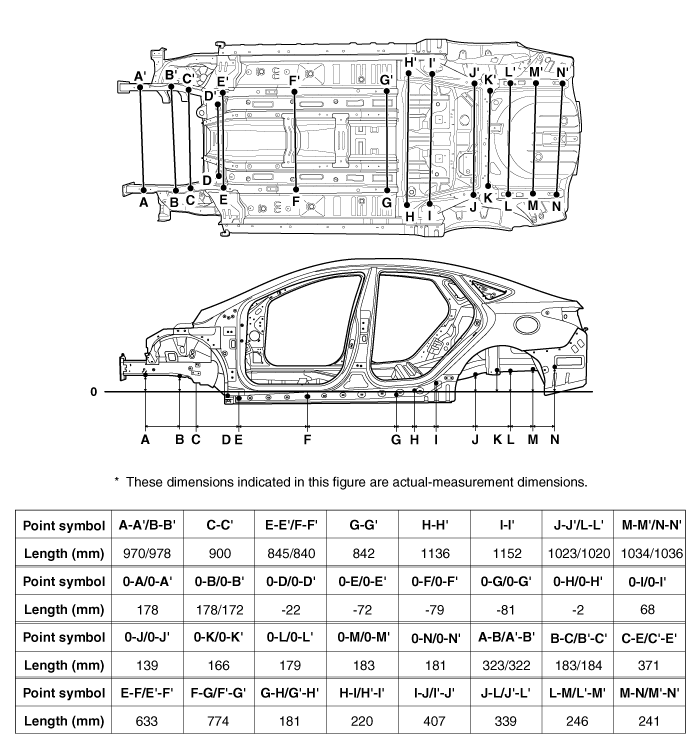

Front side member tooling hole (Ø25)
Front side member tooling hole (Ø20)
Side cover mounting hole (Ø8.6)
Side cover mounting hole (Ø10)
Sub frame mounting bolt
Sub frame mounting hole (Ø22)
Front side member tooling hole (Ø11)
Center floor side member tooling hole
(Ø25)
Center floor side member extension tooling hole (Ø14.6)
Rear floor side member tooling hole
(Ø8)
Rear floor side member tooling hole
(Ø19)
Rear floor side member tooling hole
(Ø16)
