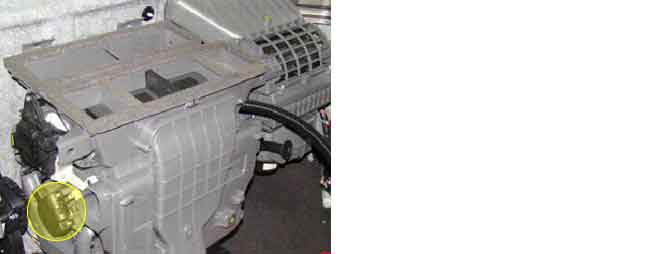

The temperature control actuator is mounted at the heater control unit. The temperature control actuator consists of a motor and a feedback potentiometer.Temperature control actuator regulates the temperature by the procedure as follows. Signal from control unit adjusts position of temp door by operating temp motor and then temperature will be regulated by the hot/cold air ratio decided by position of temp door. In operation, potentiometer delivers temp door position transformed into voltage value to A/C ECU.
Air conditioner Control Module sets DTC B1245 if Feedback signal of Driver Air mix actuator(Temperature actuator) has been detected open or below 0.1V for 100ms.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Voltage check | 1. Poor Conection in harness 2. Open in signal(Feedback signal), power and ground circuit 3. Faulty Driver Temperature Actuator 4. Faulty Air condition Contorl Module |
Enable Conditions |
•
IG KEY ON | |
Threshold value |
•
Feedback signal of Driver Air mix actuator(Temperature actuator) has been detected open or below 0.1V for 100ms | |
Failsafe |
•
Setting temperature : 17℃(63℉)-24℃(76.1℉), fix at max. cooling position
•
Setting temperature : 25℃(77℉)-32℃(89.6℉), fix at max. heating position |
Door position | Voltage |
Max. cool | 0.4 V±0.3V |
Max. warm | 4.6 V±0.3V |
