5.
Check that the value of auto defoger mode actuator is changed with performing actuation test.
Specification : 0%(close) : About 0%, 50% : About 30%, 100%(open) : About 65%.
Connect GDS with diagnostic connector.
Warm up the engine to normal temperature after engine start.

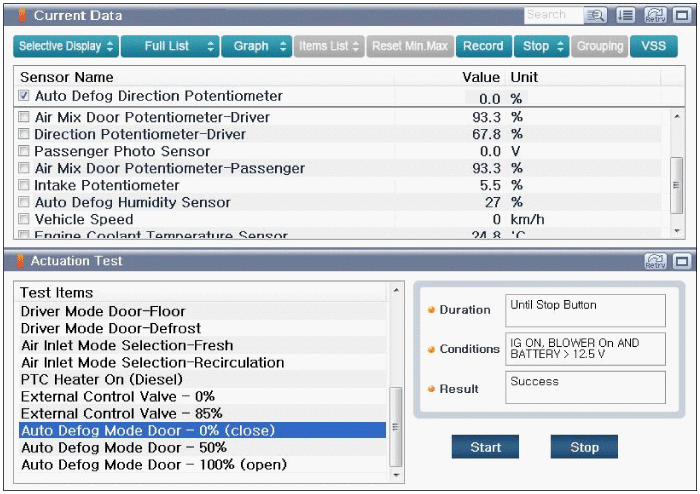

Select and monitor "Auto defoger mode direction potentioner" parameter on current data.
Perform Actuation Test for "Auto Defoger Mode Door -0%(close)/50%/100%(open)" in order.
Check that the value of auto defoger mode actuator is changed with performing actuation test.
Specification : 0%(close) : About 0%, 50% : About 30%, 100%(open) : About 65%.
Does the value of auto defoger mode actuator follow the specification ?
 | ▶ This is a intermittent problem caused by poor contact of component or Control Unit. ▶ Thoroughly check the looseness, poor connection, bent, corrison, contamination, deformation or damage of connector. ▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to " Inspection/Repair " procedure. |
