Confirm the ECU type and then download to correct parameter.

* REFERENCE*

Perform the initializing after replace "AFLS ECU"

* Vehicle condition

(1)

Park at lever land

(2)

Vehicle speed ≤ 5km/h

(3)

Engine r.p.m > 500rpm

(4)

Connect GDS

(5)

CAN communication is normal status

(6)

Battery voltage > 10.5V

(7)

Headlamp S/W ON, AFLS OFF(Auto mode off)

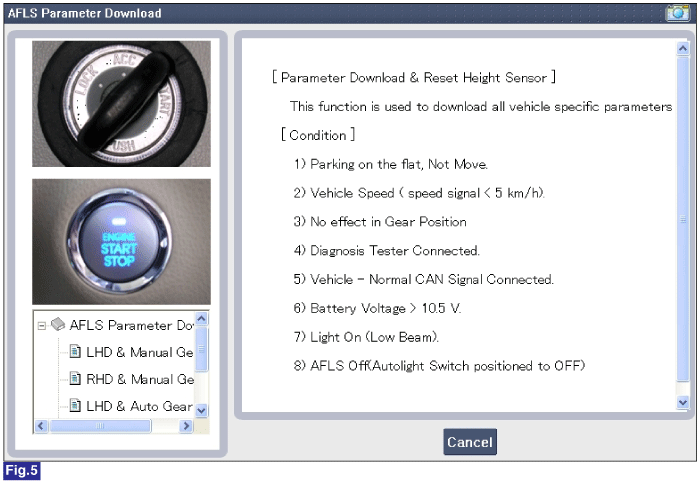

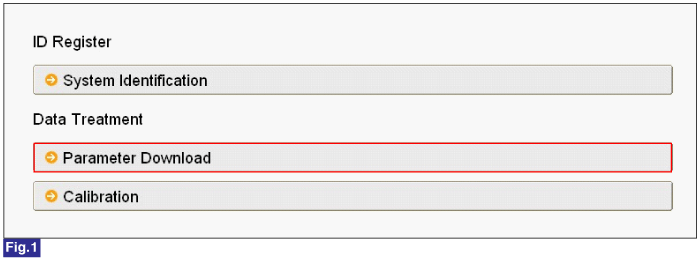

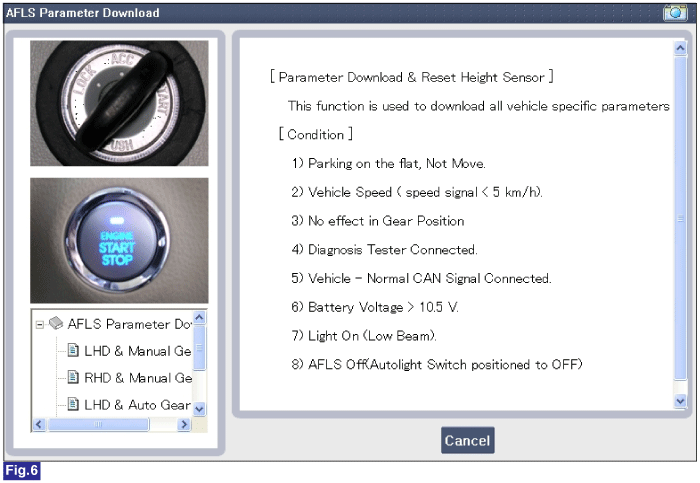

① Parameter Download

② Calibration

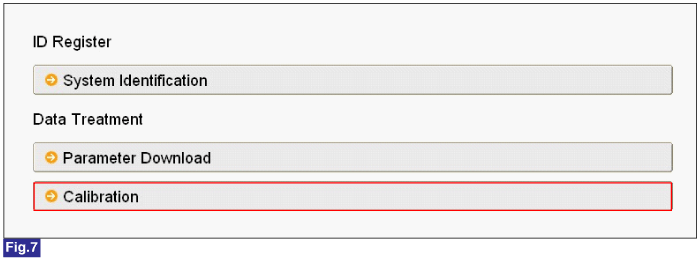

Fig.7) Select the Calibration

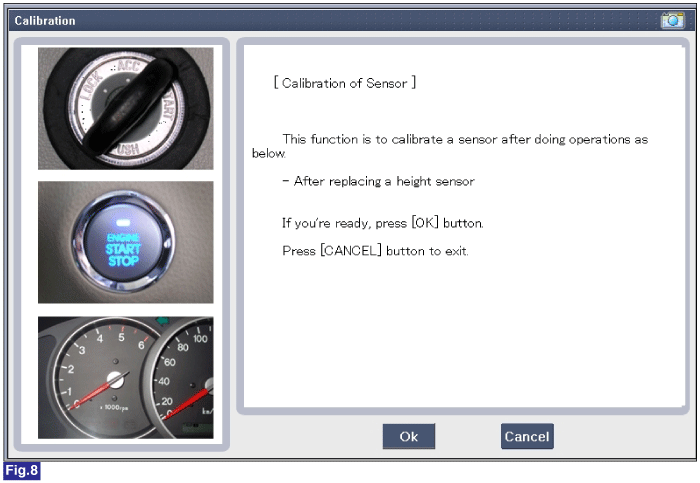

Fig.8) Calibration

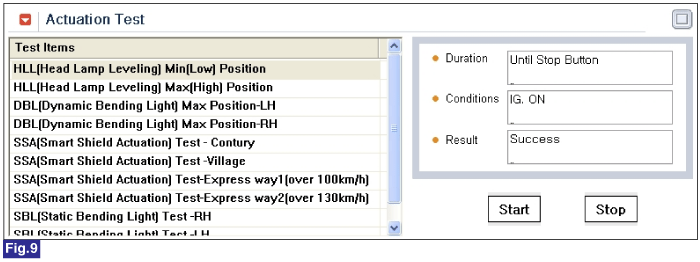

Fig.9) Actuation Test

Is parameter displayed within specifications?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Substitute with a known - good AFLS ECU and check for proper operation. If the problem is corrected, replace AFLS ECU and go to "Verification of Vehicle Repair" procedure.
