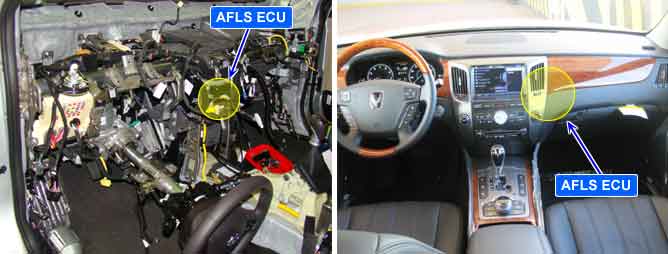

Component Location
General Description

Several control units are applied to electronically controlled vehicles. These units perform each control with informations from various sensors. Thus, sharing signal information from sensors is needed, so CAN communication type whose communication speed is high and insensitive to electrical noise by spark generation is adopted to controlling power-train(engine, atutomatic transaxle, ABS, TCS, ECS)AFLS ECU is input some informations(engine speed, steering angle sensor's signal, vehicle speed) in order to maintain optimum headlamp condition through CAN communication.

DTC Description

When the AFLS ECU cannot read any data from CAN-BUS line, the AFLS ECU sets this code. CAN-BUS circuit malfunctioning or short to battery or ground line can be a posssible cause of this DTC.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

Signal monitoring

1.

Faulty in CAN communication dircuit.

2.

Faulty in CAN communication module.

Enable Conditions

IG ON

Threshold Value

Faulty in CAN communication circuit.

Detecting time

1s

Fail Safe

Leveling performance decline.

Swivelling move to 0° position

Check Lamp

NO

Diagnostic Circuit Diagram
