3.
Monitor the "CAN" parameters on the GDS.
(Check the data of AFLS with (TCM, ECM, ECS, ABS/ESP/TCS,SAS/EPS, SRS, EPB, Cluster, LKAS, SMK ,SPAS, FATC, AAF, TPMS)

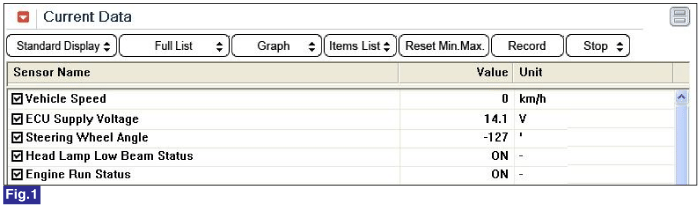

FIg.1) Engine "ON" - AFLS's current data(CAN Data)
Connect GDS to Data Link Connector(DLC).
Engine "ON" and Head lamp"ON".
Monitor the "CAN" parameters on the GDS.
(Check the data of AFLS with (TCM, ECM, ECS, ABS/ESP/TCS,SAS/EPS, SRS, EPB, Cluster, LKAS, SMK ,SPAS, FATC, AAF, TPMS)
FIg.1) Engine "ON" - AFLS's current data(CAN Data)
Is parameter displayed within specifications?
 | ▶ Fault is intermittent caused by poor contact in the sensor’s and/or AFLS ECU’s connector or was repaired and AFLS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of vehicle Repair" procedure. |
 | ▶ Go to "Inspection/Repair " procedure. |
