3.
perform sensor initialization.
* REFERENCE*
Perform the initializing after replace "Height sensor"
* Vehicle condition
1) Park at lever land
2) Vehicle speed ≤ 5km/h
3) Engine r.p.m > 500rpm
4) Connect GDS
5) CAN communication is normal status
6) Battery voltage > 10.5V
7) Headlamp S/W ON, AFLS ON
① Calibration
② Clear "DTC"
③ Confirm the Headlamp movement through the Actuation Test
④ Confirm the "DTC" and "Service data"

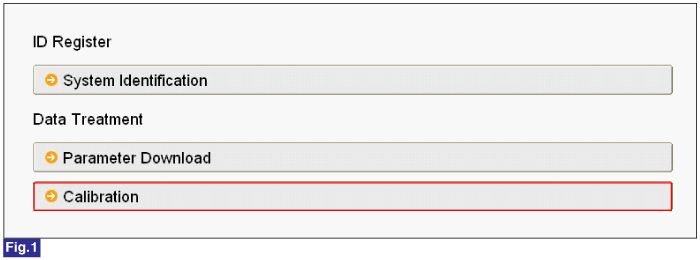

Fig.1) Select the Calibration

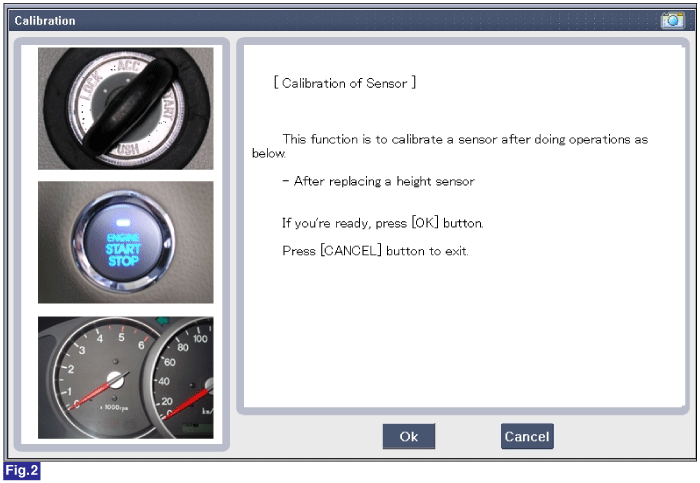

Fig.2) Calibration

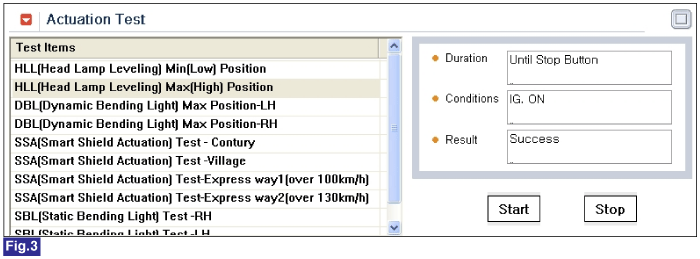

Fig.3) Actuation Test

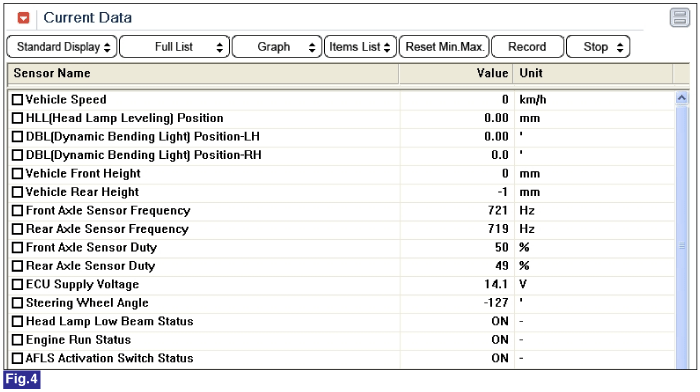

Fig.4) Engine "ON" - AFLS's current data
