During engine drive, when vehicle speed 70km/h above and turn the steering wheel to the left by 25 degrees, a signal of the steering wheel is transfer to the BCM.
And then the BCM sends the signal to the SJB via CAN Communications.

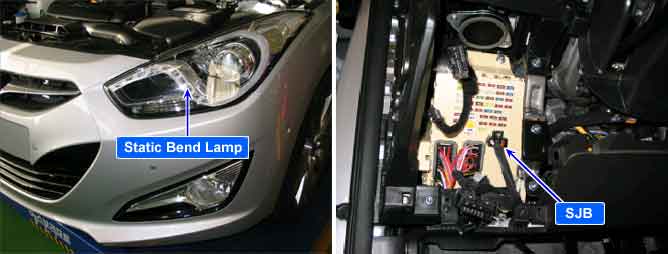

After all, the SJB makes the Static Bend Lamp-LH turn on.
This code is set when Left Static Bend Lamp circuit is shotted to ground for more than 150ms during Left Static Bend Lamp operating.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Load Mornitoring | 1. Poor connection 2. Open in Front Left turn signal lamp circuit 3. Faulty Front Left turn signal lamp 4. Faulty SJB |
Enable Conditions |
•
IG KEY ON. | |
Threshold Value |
•
It is normal if output voltage is 12V. | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
