During engine drive, when vehicle speed 70km/h above and turn the steering wheel to the left by 25 degrees, a signal of the steering wheel is transfer to the BCM.
And then the BCM sends the signal to the SJB via CAN Communications.

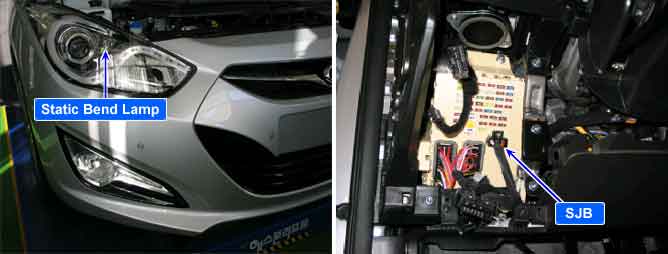

After all, the SJB makes the Static Bend Lamp-RH turn on.
This code is set when Right Static Bend Lamp circuit is shotted to ground for more than 150ms during Right Static Bend Lamp operating.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Load Mornitoring | 1. Poor connection 2. Short to ground in Right Static Bend Lamp circuit 3. Faulty Right Static Bend Lamp 4. Faulty SJB |
Enable Conditions |
•
IG KEY ON. | |
Threshold Value |
•
It is abnormal if output voltage is 0V. | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
