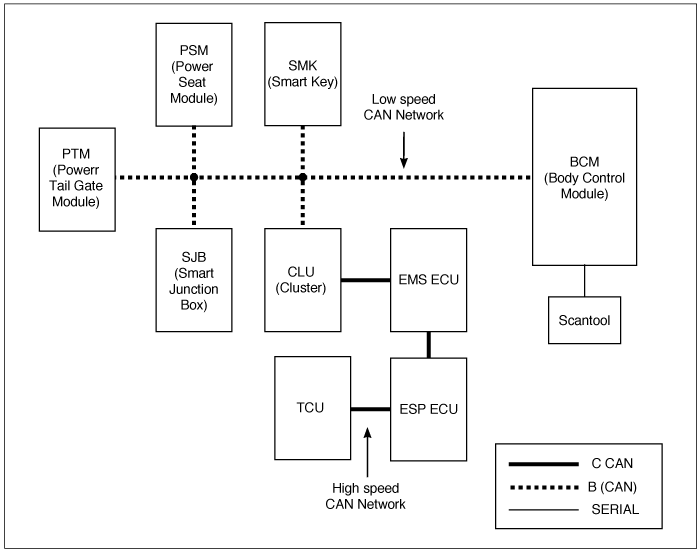

Once BCM receives left turn switch working signal, it sends the signal to SJB by CAN communition. SJB makes left turn signal lamp flickering.

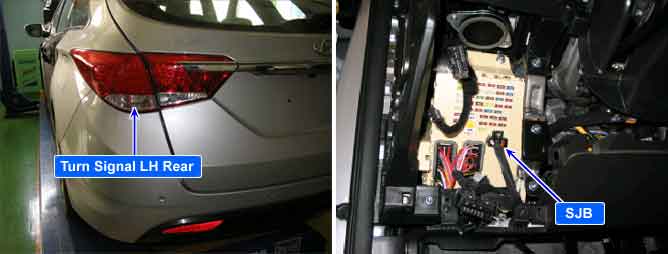

This code is set when Rear left turn signal lamp circuit is open for more than 150ms during left turn signal lamp operating.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Load Mornitoring | 1. Poor connection 2. Open in Rear left turn signal lamp circuit 3. Faulty Rear left turn signal lamp 4. Faulty SJB |
Enable Conditions |
•
IG KEY ON. | |
Threshold Value |
•
It is normal if output voltage is 12V. | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
