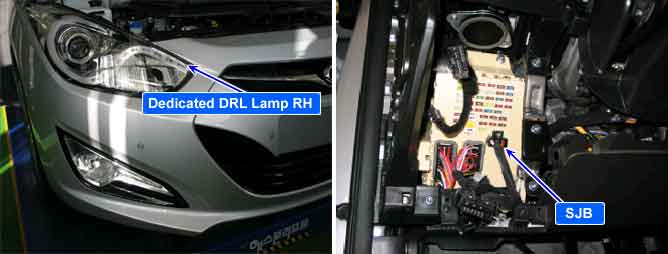

Once the BCM receives a signal for the Dedicated DRL Lamps, it sends the signal to SJB via CAN communition. SJB turns on Dedicated DRL Lamps.
This code is set when Dedicated DRL Lamp circuit is shortted to ground for more than 150ms during Dedicated DRL Lamp operating.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Load Mornitoring | 1. Poor connection 2. Short to ground in Dedicated DRL Lamp circuit 3. Faulty Dedicated DRL Lamp 4. Faulty SJB |
Enable Conditions |
•
IG KEY ON. | |
Threshold Value |
•
It is abnormal if output voltage is 0V.
•
Dedicated DRL Lamp Circuit Short To Ground | |
Diagnostic Time |
•
Immediately | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed. |
