BCM(PAS) is a parking assistant system. It has a supersonic sensor which radiates supersonic to front and rear side of the vehicle to detect supersonic reflected from an obstacle. It calculates distances between vehicle and obstacle if it detects reflected supersonic. It warns being obstacle to drivers through buzzer or displaying on cluster according to distance from obstacle. Warning level is divided into 3 step (warning level rises progressively according to distance from obstacle)

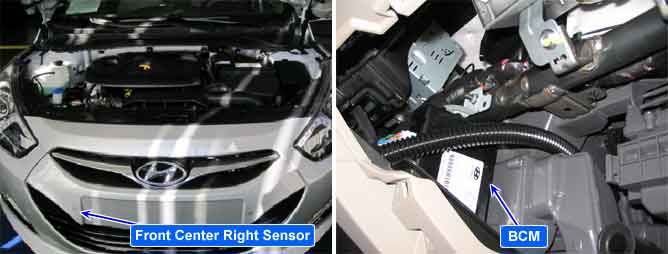

This code reports an error in LIN line. The purpose is to verify the status of BCM(PAS), Sensor and Wire when error is detected at PAS of Front Center Right Sensor.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Signal output of Front Center Right Sensor and LIN line checking(10ms) | 1. TX line of Front Center Right Sensor open or poor connection 2. Ground line of Front Center Right Sensor open or poor connection 3. Power line of Front Center Right Sensor open or poor connection 4. Replace a sensor after checking a wire of Front Center Right Sensor |
Enable Conditions |
•
IG KEY ON, Shift lever D | |
Threshold Value |
•
Front Center Right Sensor fault
•
LIN communnication fault
•
Poor connection
•
LIN line open | |
Diagnostic Time |
•
Immediately(More than 4 times after IG KEY ON) | |
DTC Erasing Time |
•
DTC is erased immediately after trouble fixed |
Fig.1) Normal waveform(1) when obstacles is detected by sensor at shift lever D after IGN1 ON
Fig.2) Normal waveform(2) when obstacles is detected by sensor at shift lever D after IGN1 ON
