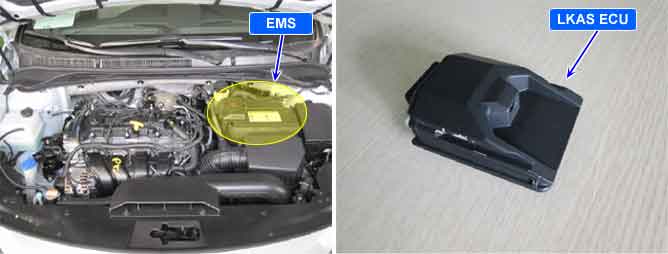

The CAN communication circuit consists of Low & High communication lines and two 120 Ω resistors, each of which is installed in EMS and Cluster respectively, to enable communication between different units (EMS-ECU, VDC, FATC and Cluster). LKAS communicates with each of these units to control the MDPS motor.
If LKAS cannot send or receive a CAN message due to the open or short-circuit of the CAN communication line, the fault code C161688 is generated.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Detect a CAN communication signal | 1. Poor contact with a connector 2. Open or short-circuited CAN communication line |
Enable Conditions |
•
IG "ON" or Engine "ON" | |
Threshold Value |
•
If the CAN Bus Off condition is detected more than 9 times due to the short-circuited CAN communication line | |
Diagnostic Time |
•
Immediately |
