4.
Monitor the " SPAS Sensor - Front Right" parameter while moving an obstacles back and forth.

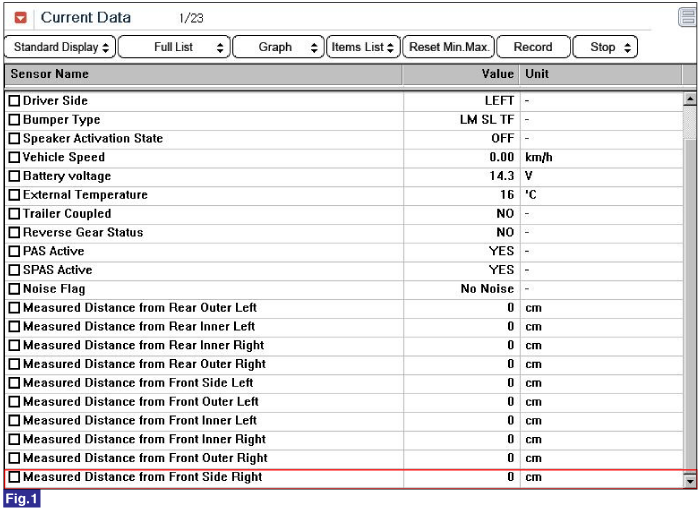

Fig.1) absent of an obstacles

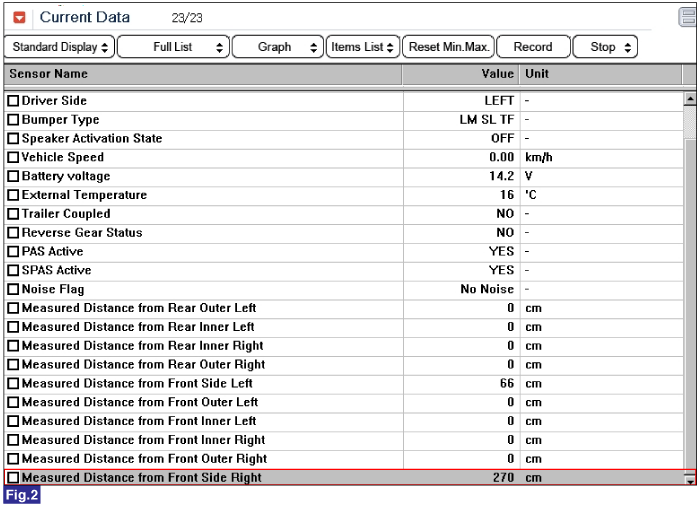

Fig.2) existent of an obstacles
Connect scantool to Data Link Connector (DLC).
Engine "ON".
Select the " SPAS Sensor - Front Right" parameter among Current Data.
Monitor the " SPAS Sensor - Front Right" parameter while moving an obstacles back and forth.
Fig.1) absent of an obstacles
Fig.2) existent of an obstacles
Is the parameter displayed within specifications?
 | ▶ Fault is intermittent caused by poor connection in SPAS ECU's connector or was repaired and SPAS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Termminal Connector Inspection" procedure. |
