Connect scantool to Data Link Connector (DLC).

Ignition "ON"& Engine "OFF".

Select the item such as " Country Variant, Driver Side, Bumper Type" in the Current data.

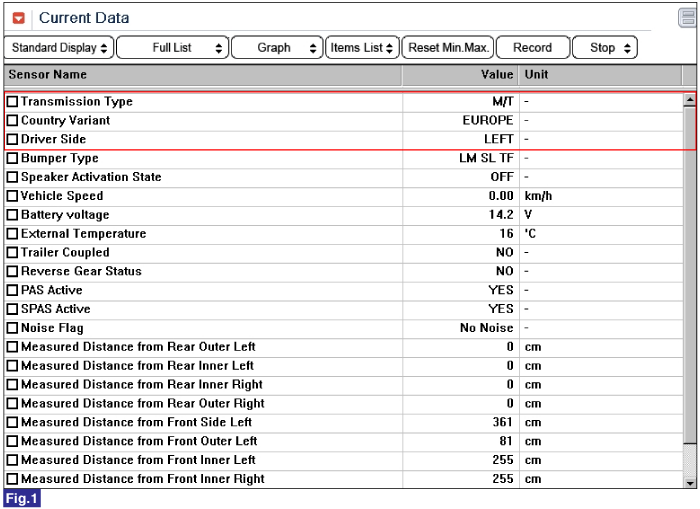

Fig.1) The Current data related to SPAS Variant

Match the specifications of the vehicle?

	▶ Fault is intermittent caused by poor connection in SPAS ECU's connector or was repaired and SPAS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
	▶ Go to "SPAS Variant Coding " procedure.

Connect scantool to Data Link Connector (DLC).

Ignition "ON"& Engine "OFF".

After selecting SPAS Variant Coding function, do the SPAS Variant coding in the vehicles.

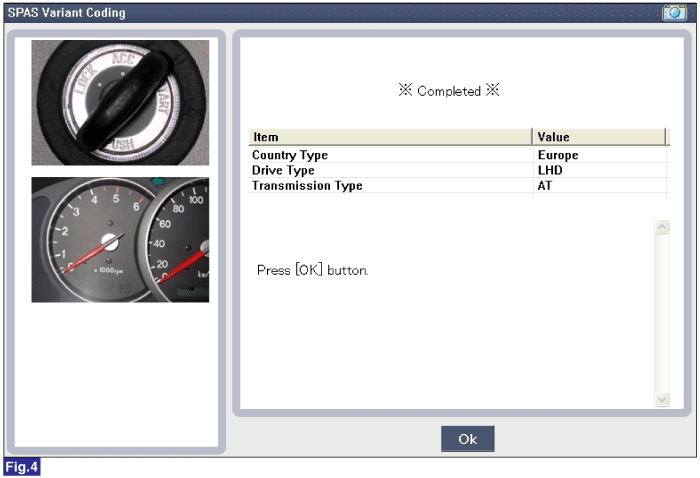

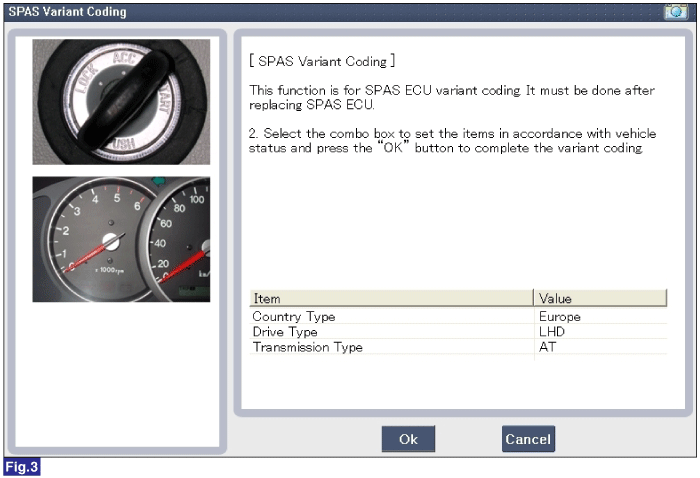

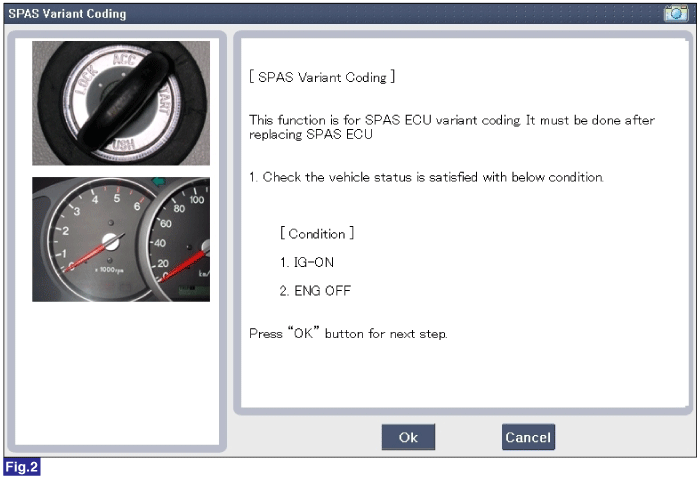

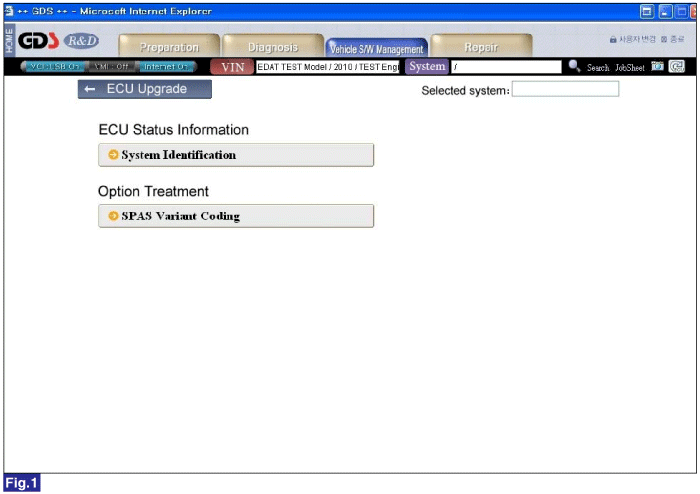

Fig.1_4) SPAS Variant Coding method and procedure.

* After SPAS Variant Coding, do Ignition SW OFF

Dose be completed the SPAS Variant Coding ?

	▶ Check the applicable troubleshooting procedure repeatedly.
	▶ Substitute with a known-good Sample of SPAS and check for proper operation. If problem is corrected, replace SPAS and then go to "Verification of Vehicle Repair" procedure.

* When you replace SPAS ECU, must do Variant Coding repeatedly.
