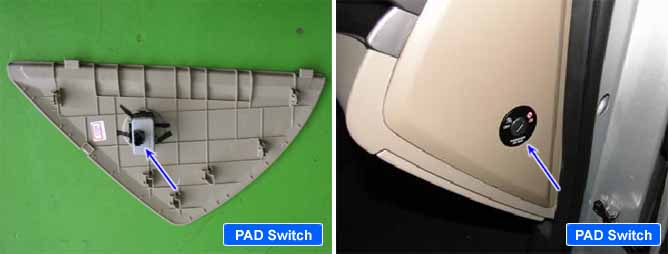

PAD Switch(Passenger airbag deactivation Switch) is the device which prevents Passenger airbag from being deployed when the passenger seat is unoccupied as driver turning OFF PAD Switch.
When PAD Switch turned OFF, " PASSENGER SRS OFF" lamp turns ON.
The above DTCs are recorded when the defect of the PAD Switch is detected in PAD Switch circuit.
Item | Detecting Condition | Possible cause | |
DTC Strategy |
•
Check current | 1. Faulty PAD Switch. 2. Faulty SRSCM. | |
Enable conditions |
•
Ignition "ON" | ||
Threshold value |
•
Faulty PAD Switch | ||
Diagnostic Time | Qualification |
•
More than 1 sec | |
De-Qualification |
•
More than 2 sec | ||
