3.
Monitor the "Brake pedal signal" parameters on the GDS.(ECM's current data).

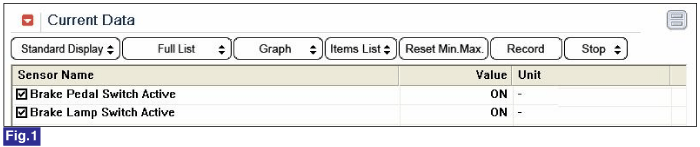

FIg.1) ENG "ON" - ECM'S current data(Brake pedal signal)
Connect GDS to Data Link Connector(DLC).
ENG "ON"
Monitor the "Brake pedal signal" parameters on the GDS.(ECM's current data).
FIg.1) ENG "ON" - ECM'S current data(Brake pedal signal)
Is parameter displayed within specifications?
 | ▶ Go to "Inspection/Repair" procedure. |
 | ▶ When Brake S/W output not available signal, check the Engine system and then go to "Verification of Vehicle Repair" procedure. |
