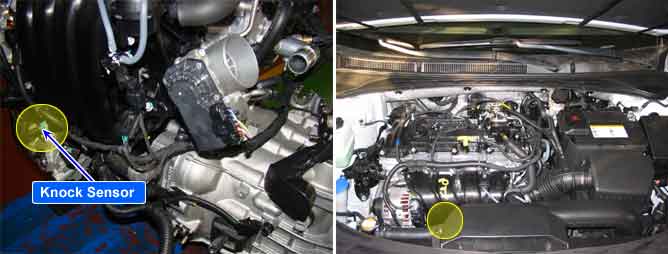

Knocking is a phenomenon characterized by undesirable vibration and noise that can cause engine damage. A knock sensor (KS) is mounted on the cylinder block and senses engine knocking. A knocking vibration from the cylinder block is applied as pressure to the piezoelectric element. A knock sensor (KS) detects vibration when RPM rises or drops and generates voltages based on this vibration. The ECM/PCM controls the ignition timing based on the amplitude and frequency of the knock sensor signal. For example, if engine knocking occurs, the ignition timing is retarded to prevent it.
If the number of knock sensor errors is less than the lower limit or the upper limit, ECM/PCM sets P0326.
Item | Detecting Condition | Possible Cause | |
Case1 | DTC Strategy |
•
Signal check | 1. Poor connection 2. Open or short in signal circuit 3. Knock sensor |
Enable Conditions |
•
Engine coolant temperature > 70℃
•
Engine speed > 2440rpm
•
Engine load > 30 ~ 42% | ||
Threshold Value |
•
Number of knock sensor errors > upper limit or Number of knock sensor errors < lower limit | ||
Diagnostic Time |
•
Continuous | ||
MIL ON Condition |
•
DTC only | ||
