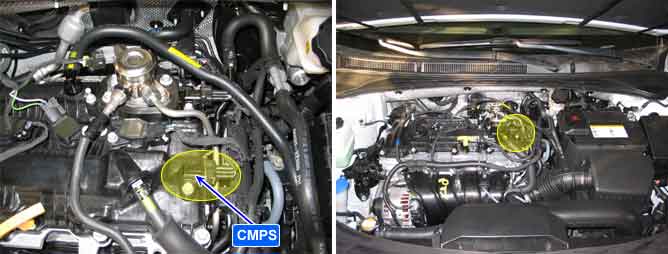

Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is related with Crankshaft Position Sensor (CKPS) and detects the piston position of the each cylinder which the CKPS can’t detect. The CMPS are installed on engine head cover and uses a target wheel installed on the camshaft. This sensor has a hall-effect IC which output voltage changes when magnetic field is made on the IC with current flow. When teeth on the target wheel trigger the sensor, output voltage is 5V. If not, it is 0V. These CMP signal is sent to the ECM/PCM and used for determining the ignition timing along with CKP signal. CMPS makes Sequential Injection possible.
Checking oputput signals from CMP during engine running, if the expected number of cam tooth count is not observed, ECM/PCM sets P0341.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Signal check | 1. Poor connection 2. Abnormal assembling state 3. CMPS |
Enable Conditions |
•
No CKP sensor error
•
Gap of CKP sensor wheel detected | |
Threshold Value |
•
Unplausible signal counter > 20 times | |
Diagnostic Time |
•
Continuous | |
MIL ON Condition |
•
3 driving cycle |
Fig 1) Normal waveform of IN-CMPS & Ex-CMPS at idle.
