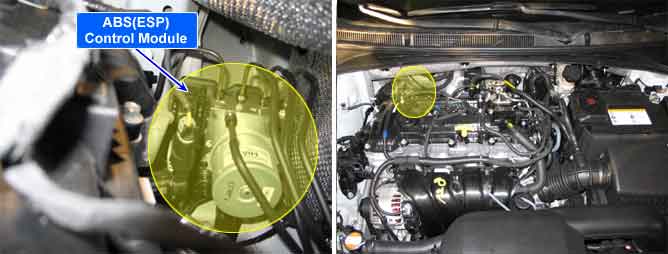

Vehicle speed is sent from ABS(VDC) module. ABS(VDC) calculates the vehicle speed with the wheel speed sensor. Also converts it into the digital signal and sends it to ECM/PCM. When DTC P2159 occurs, check the ABS system error first and then check the engine system.
If the vehicle speed signal is below 1.0 Km/h during 2 sec under enable conditions, ECM/PCM sets P2159.
Item | Detecting Condition | Possible Cause | |
DTC Strategy |
•
Signal check (implausible) | 1. Poor connection 2. Open or short in signal circuit 3. ABS/ESP Module | |
Case1 | Enable Conditions |
•
Sensor signal no error | |
Threshold Value |
•
Vehicle speed < 0kph or > 240kph | ||
Case2 | Enable Conditions |
•
1520 < rpm <3500 | |
Threshold Value |
•
Vehicle speed signal < 4.0 kph | ||
Diagnostic Time |
•
2 sec | ||
MIL ON Condition |
•
3 driving cycle | ||
