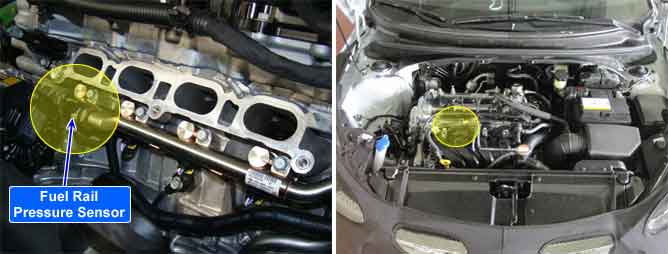

Component Location
General Description

Fuel rail pressure sensor is mounted to fuel rail and it senses fuel rail pressure.

GDI ECM/PCM operates fuel pressure control valve with the signal from fuel rail pressure sensor to control optimized RPM and rail pressure.

DTC Description

ECM/PCM shows P0191 when the average value from fuel rail pressure sensor is out of range of threshold value. This code is for abnormal sensor.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

•

Rationality check

1.

Poor connection

2.

FPS

Enable Conditions

•

Low pressure pump is operating.

Threshold Value

•

Average value of fuel rail ＞32 ㎫

•

Average value of fuel rail＜ 0.13 ㎫

Diagnostic Time

•

0.6 sec.

MIL ON Condition

•

3 driving cycle

Diagnostic Circuit Diagram
Signal Waveform and Data

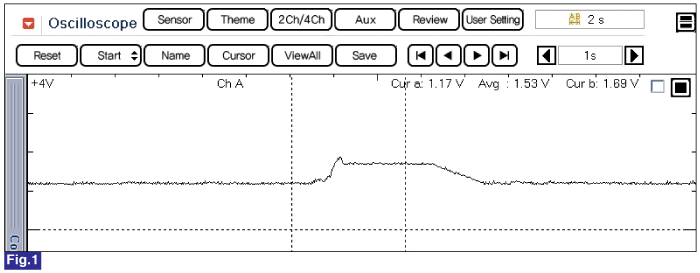

Fig 1) Normal waveform of FPS at acceleration.
