IG KEY "OFF", ENGINE "OFF".

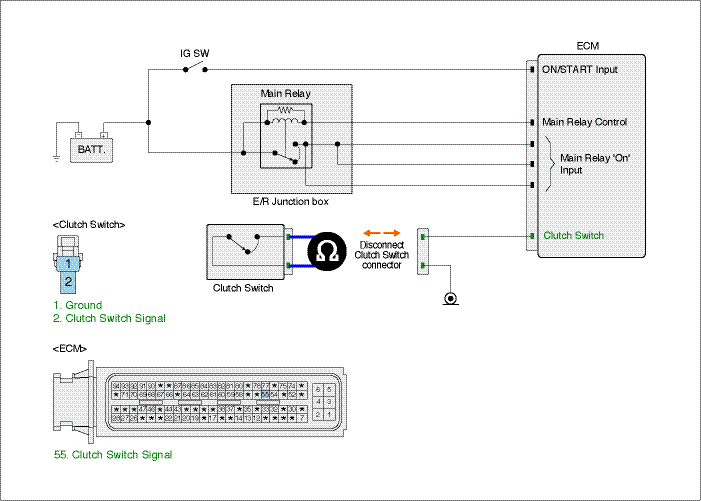

Disconnect clutch switch connector.
Check continuity between signal terminal and ground termimal of clutch switch connector. (component side) as depressing clutch pedal.
Specification : Clutch pedal depressed : Continuity ( below 1.0Ω )
Clutch pedal released : Discontinuity ( Infinite Ω )
Is the measured resistance within the specification?
 | ▶ Go to "Verification of Vehicle Repair". |
 | ▶ After checking height of clutch pedal, if there is no problem, replace clutch switch and go to "Verification of Vehicle Repair". |
