Component Inspection
1.

IG KEY "OFF", ENGINE "OFF".

2.

Disconnect neutral gear switch connector and ECM connector.

3.

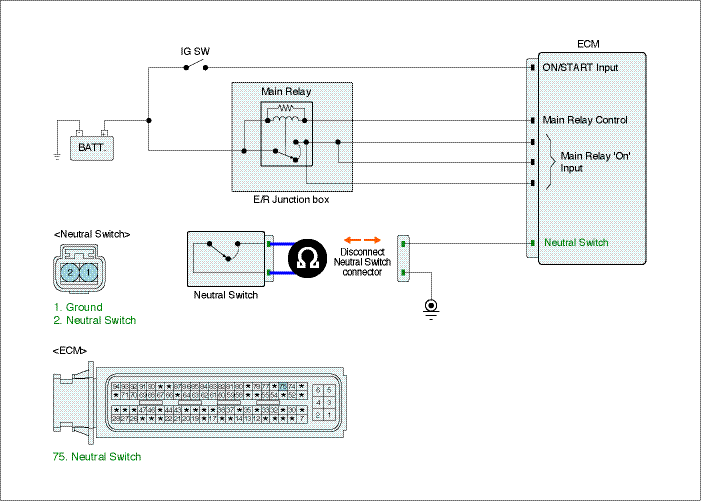

Check the contituity between signal terminal and ground terminal of neutral gear switch connector (component side) as shifting gear lever 2~3 times.

Specifications : At neutral position : Continuity (below 1.0)

At any gear position except neutral position : Discontinuity ( Iinfinite Ω )

4.

Is the measured resistance within the specification?

▶ Go to "Verification of Vehicle Repair".

▶ Replace neutral gear switch and go to Verification of Vehicle Repair".
