3.

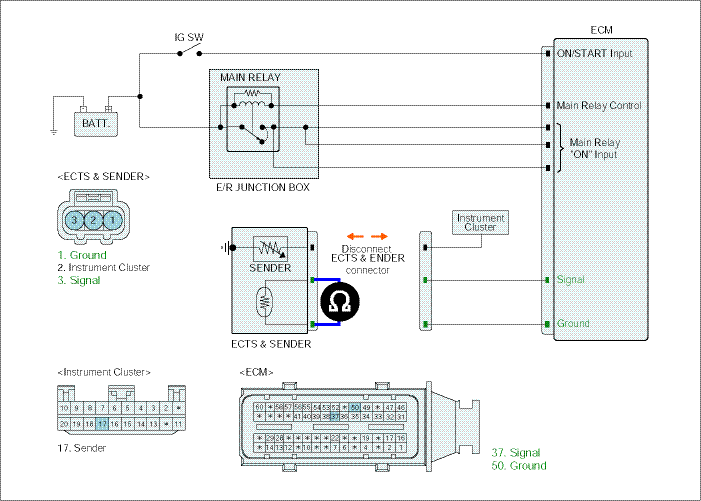

Measure resistance between signal terminal and ground terminal of ECTS.
Specification : Refer to Specification of General Information.
IG KEY "OFF", ENGINE "OFF".
Disconnect ECTS connector.
Measure resistance between signal terminal and ground terminal of ECTS.
Specification : Refer to Specification of General Information.
Is the measured resistance at certain temperature within the specified resisance range at the temperature?
 | ▶ Go to "Verification of Vehicle Rapair". |
 | ▶ Replace ECTS and go to "Verification of Vehicle Repair". |
